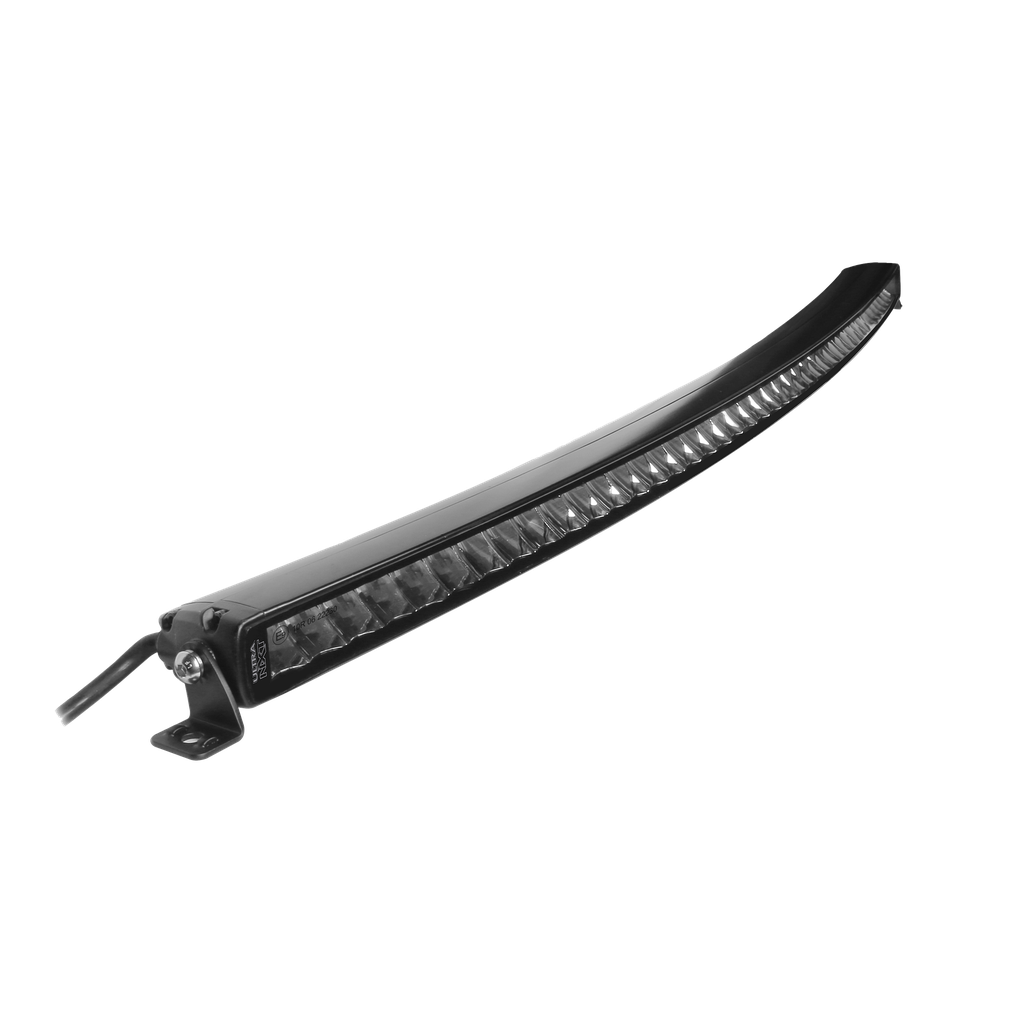

ULTRA NXT 50" Curved Single Row LED Light Bar – Flood/Spot Combo, 22,680 Lumens

ULTRA NXT 50" Curved Single Row LED Light Bar – Flood/Spot Combo, 22,680 Lumens

A 50" curved single row LED light bar with a flood/spot combo beam, from the Uni-Bond ULTRA NXT series. 54 × 5 W LEDs produce 22,680 raw lumens (11,723–7,365 effective) with 3,560–2,680 ft of optimal penetration. Runs on 12–30 V, drawing 19.1 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 22,680 raw lumens (11,723–7,365 effective) · combo beam · 3,560–2,680 ft optimal penetration
  • 12 V – 30 V input · 19.1 A @ 12 V draw
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Side Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1822 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
$ 481.10 $ 481.10
$ 481.10

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW885068

Specifications

Raw Lumens22,680 lm
Effective Lumens11,723 – 7,365 lm
Optimal Penetration3,560 – 2,680 ft
LEDs54 × 5 W
Beam PatternCombo

Operating Voltage12 V – 30 V
Amp Draw19.1 A @ 12 V
Plug & Go HarnessPT1822 (sold separately)

TypeSingle Row - CURVED
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size50" L × 1.88" H × 2.14" D
1270.0 L × 47.8 H × 54.4 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW885068
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW885068 50" Curved Single Row LED Light Bar
  • Side brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1822 Plug & Go Harness (sold separately).

Accessories (Sold Separately)

Application

Off-road.
