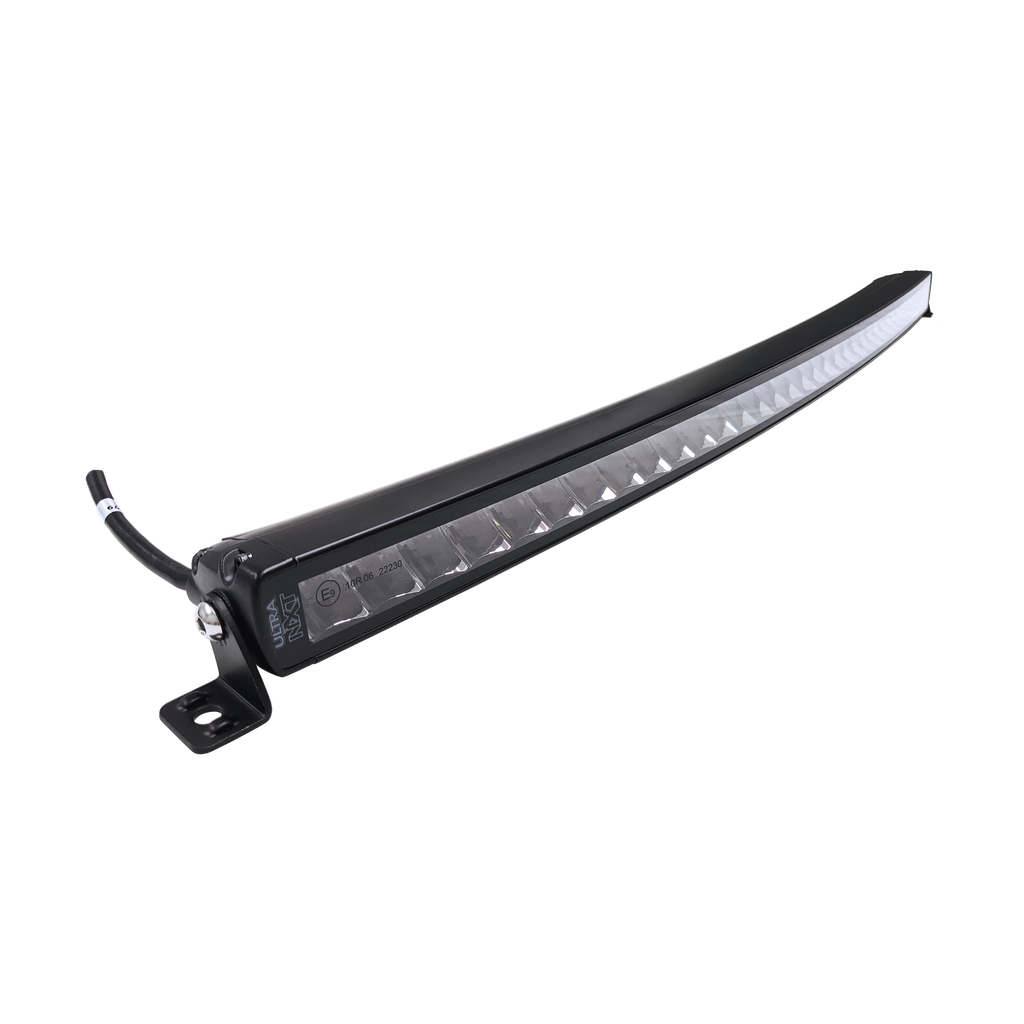

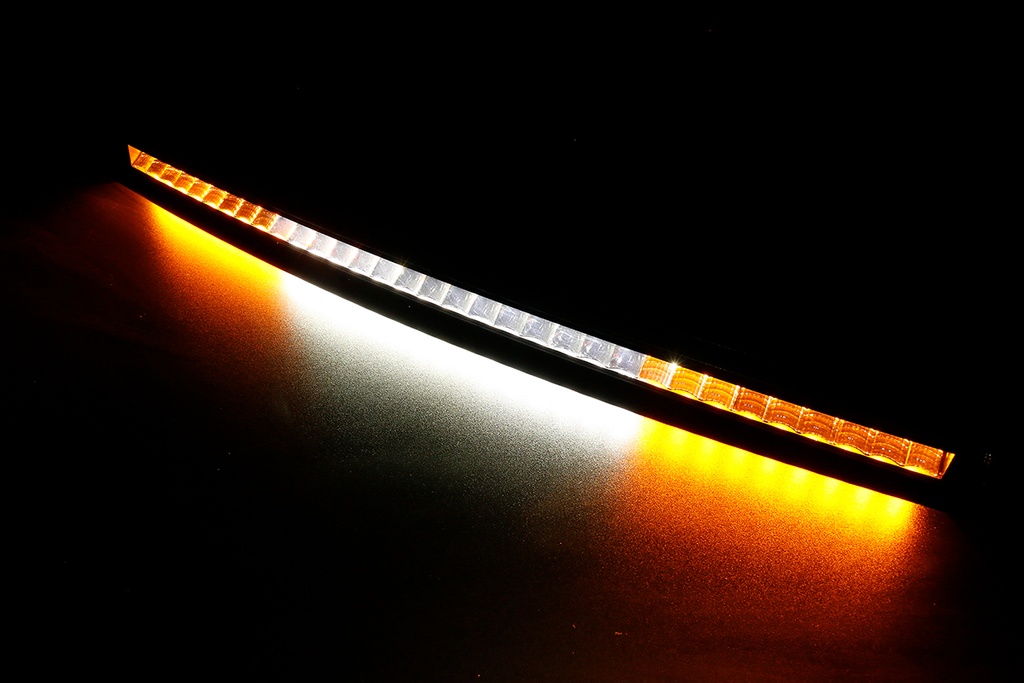

ULTRA NXT 32" Curved Single Row Amber/White LED Combo Light Bar – 5,560 Lumens

A 32" curved single row ULTRA NXT light bar combining amber flood optics with a white spot. 33 × 5 W LEDs produce 5,560 raw lumens with 1,400–1,100 ft of optimal penetration. Runs on 10–30 V, drawing 10.48 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 5,560 raw lumens · combo beam · 1,400–1,100 ft optimal penetration
  • 10 V – 30 V input · 10.48 A @ 12 V draw
  • Unique Amber Floods with White Spot
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Side Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1822 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
$ 315.18 $ 315.18
$ 315.18

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW883268AW

Specifications

Raw Lumens5,560 lm
Optimal Penetration1,400 – 1,100 ft
LEDs33 × 5 W
Beam PatternCombo

Operating Voltage10 V – 30 V
Amp Draw10.48 A @ 12 V
Plug & Go HarnessPT1822 (sold separately)

TypeSingle Row - CURVED
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size32" L × 1.88" H × 2.14" D
812.8 L × 47.8 H × 54.4 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW883268AW
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW883268AW 32" Curved Single Row Amber/White LED Combo Light Bar
  • Side brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1822 Plug & Go Harness (sold separately).

Accessories (Sold Separately)

Application

Off-road.
