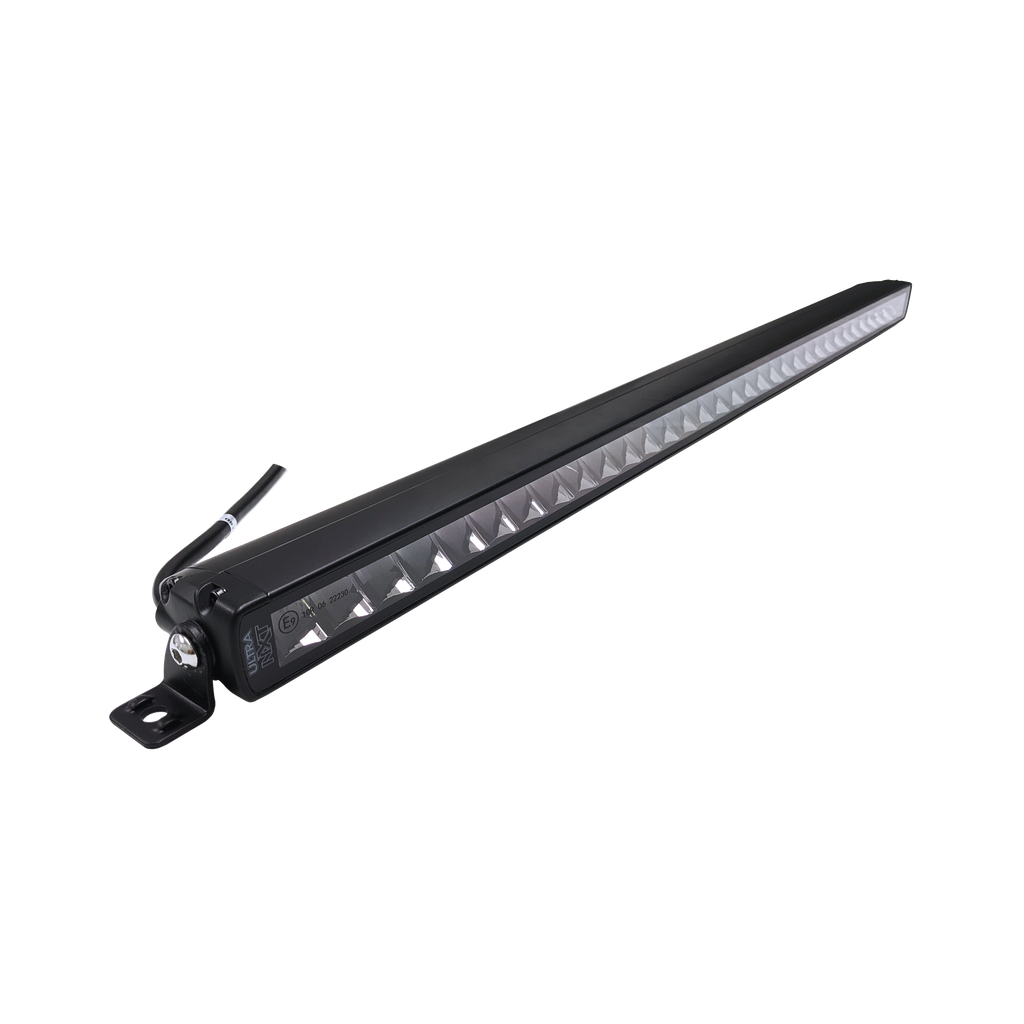

ULTRA NXT 32" Single Row LED Light Bar – Flood/Spot Combo, 13,860 Lumens

ULTRA NXT 32" Single Row LED Light Bar – Flood/Spot Combo, 13,860 Lumens

A 32" single row LED light bar with a flood/spot combo beam, from the Uni-Bond ULTRA NXT series. 33 × 5 W LEDs produce 13,860 raw lumens (9,221–7,445 effective) with 5,100–4,460 ft of optimal penetration. Runs on 10–30 V, drawing 12.5 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 13,860 raw lumens (9,221–7,445 effective) · combo beam · 5,100–4,460 ft optimal penetration
  • 10 V – 30 V input · 12.5 A @ 12 V draw
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Side Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1822 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
$ 271.30 $ 271.30
$ 271.30

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW883208

Specifications

Raw Lumens13,860 lm
Effective Lumens9,221 – 7,445 lm
Optimal Penetration5,100 – 4,460 ft
LEDs33 × 5 W
Beam PatternCombo

Operating Voltage10 V – 30 V
Amp Draw12.5 A @ 12 V
Plug & Go HarnessPT1822 (sold separately)

TypeSingle Row
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size32" L × 1.88" H × 2.14" D
812.8 L × 47.8 H × 54.4 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW883208
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW883208 32" Single Row LED Light Bar
  • Side brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1822 Plug & Go Harness (sold separately).

Accessories (Sold Separately)

Application

Off-road.
