ULTRA NXT LED Work Lamp & Light Bar Kit – 10" Light Bar + 2 Cube Lights

An ULTRA NXT lighting kit pairing a 10" combo light bar with position light (LW881038) and two cube work lights (LW0228), all with DT plugs. Light bar: 3,780 raw lumens from 9 × 5 W LEDs (combo beam, 2,300 ft optimal penetration). Cube light: 1,920 raw lumens from 4 × 5 W LEDs (flood beam, 400 ft optimal penetration). Runs on 10–30 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

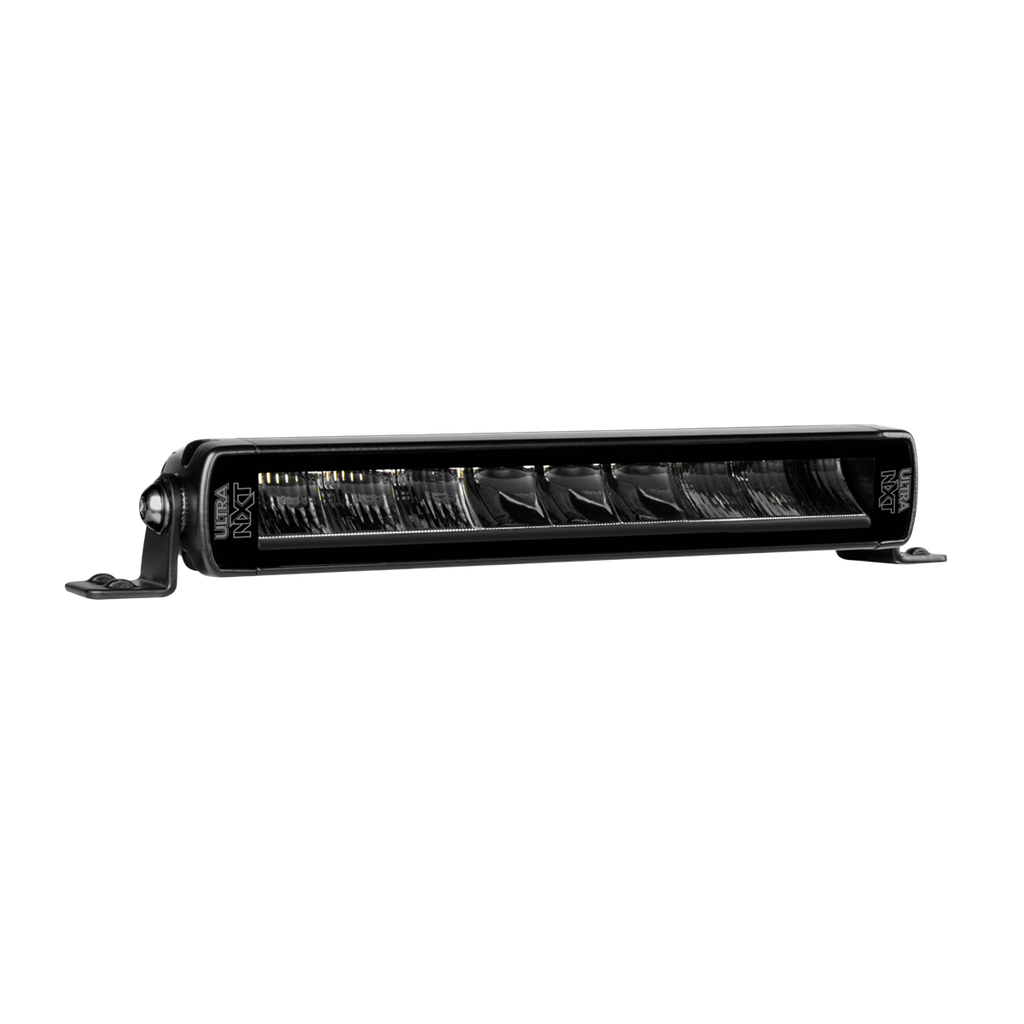

  • Light bar: 3,780 raw lumens · combo beam · 2,300 ft optimal penetration

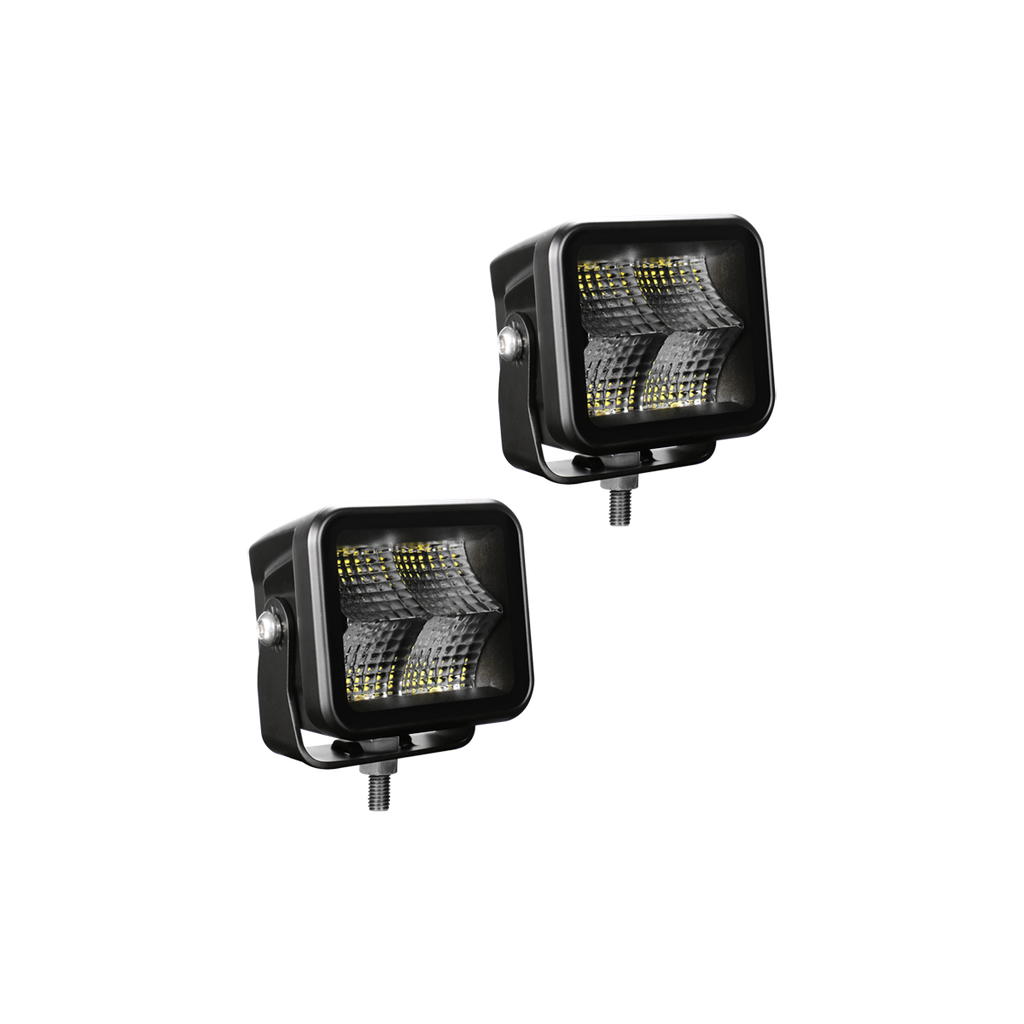

  • Cube lights: 1,920 raw lumens · flood beam · 400 ft optimal penetration
  • 10 V – 30 V input

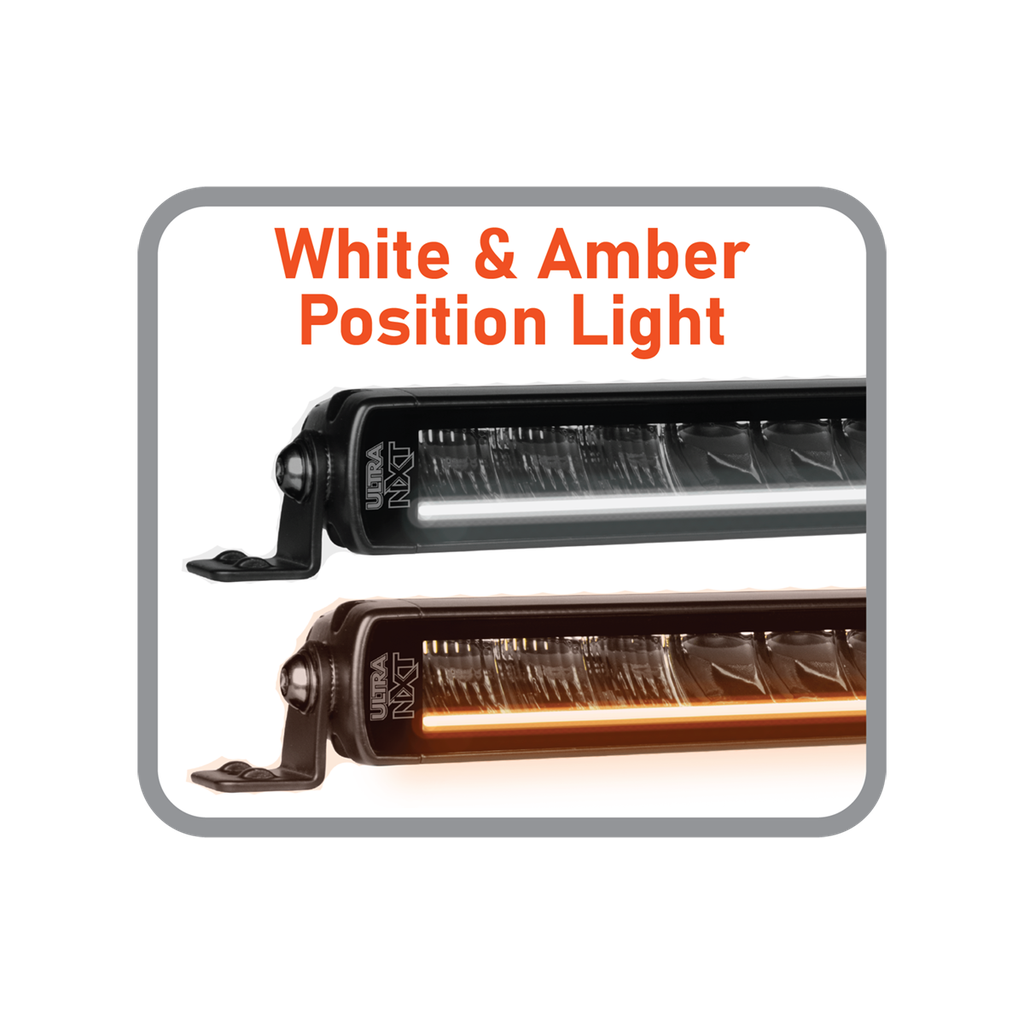

  • Light Bar + Position Light
  • Electronic Thermal Management (ETM)
  • IP68 & IP69K · CE · RoHS
$ 261.32 $ 261.32
$ 261.32

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW881038K2

Specifications

Raw Lumens3,780 lm (Light Bar)
1,920 lm (Cube Light)
Effective Lumens2,703 lm (Light Bar)
1,439 lm (Cube Light)
Optimal Penetration2,300 ft (Light Bar)
400 ft (Cube Light)
LEDs9 × 5 W (Light Bar)
4 × 5 W (Cube Light)
Beam PatternCombo / Flood

Operating Voltage10 V – 30 V
Amp Draw3.0 A @ 12 V (Light Bar)
1.9 A @ 12 V per lamp (Cube Light)
ConnectorDT plugs (light bar & cube lights)

HousingBlack Aluminum
LensPolycarbonate
Thermal ProtectionElectronic Thermal Management

Size9.66" L × 1.88" H × 2.14" D (Light Bar)
245.4 L × 47.8 H × 54.4 D mm (Light Bar)
3.17" W × 3.25" H × 3" D (Cube Light)
80.5 W × 82.5 H × 76.2 D mm (Cube Light)

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW881038K2
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingColour Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

Kit Includes

  • 1 × LW881038 10" light bar with DT plug
  • 2 × LW0228 cube lights with DT plugs

Wiring

DT plugs (light bar & cube lights). Two LW0228 cube lights: use the Uni-Bond PT6812 harness (dual-lamp, sold separately). LW881038 light bar: use the Uni-Bond PT1802 Plug & Go Harness (sold separately).

Application

Off-road.
