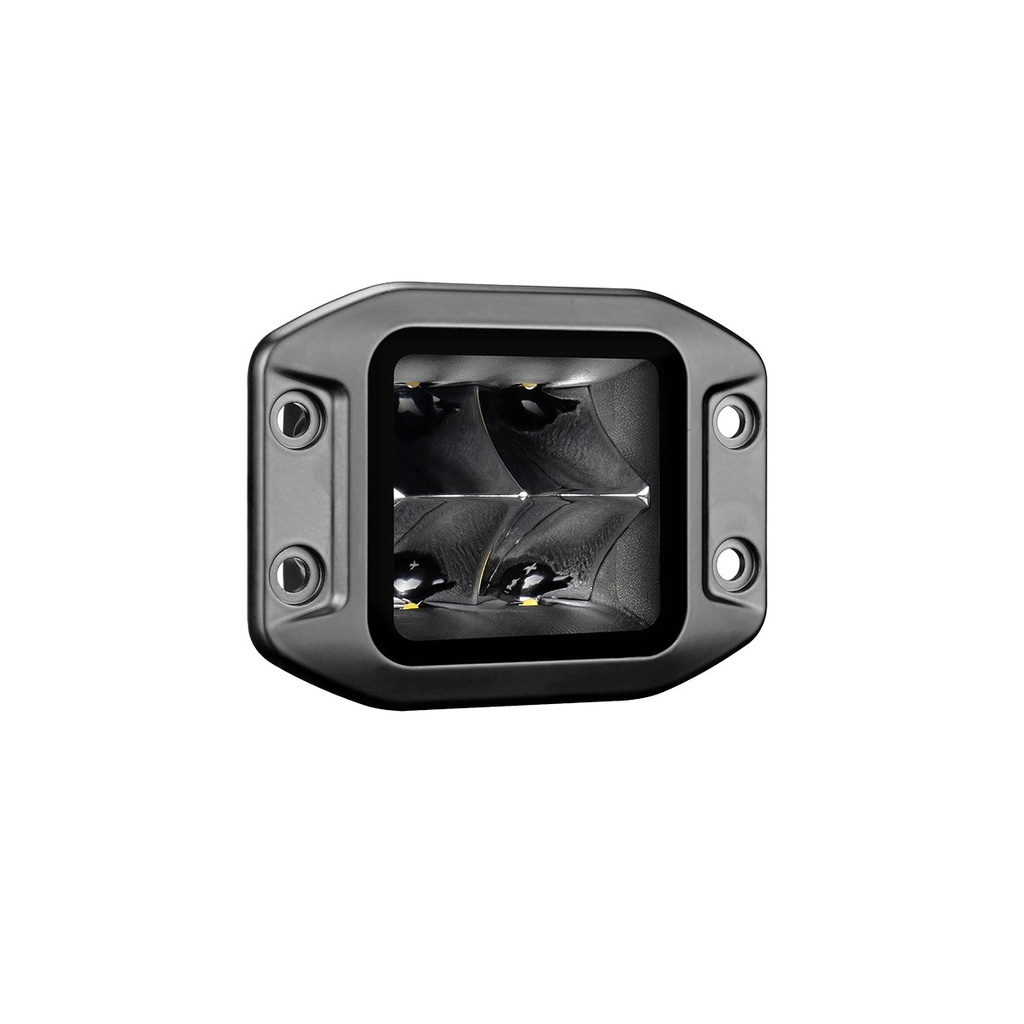

A compact 3" square LED spot lamp designed to mount flush into a surface for a clean, integrated install. 4 × 10 W LEDs produce 4,800 raw lumens (3,110–1,810 effective) with 1,900 ft of optimal penetration. Runs on 12–30 V, drawing 3.4 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.
- 4,800 raw lumens (3,110–1,810 effective) · spot beam · 1,900 ft optimal penetration
- 12 V – 30 V input · 3.4 A @ 12 V draw

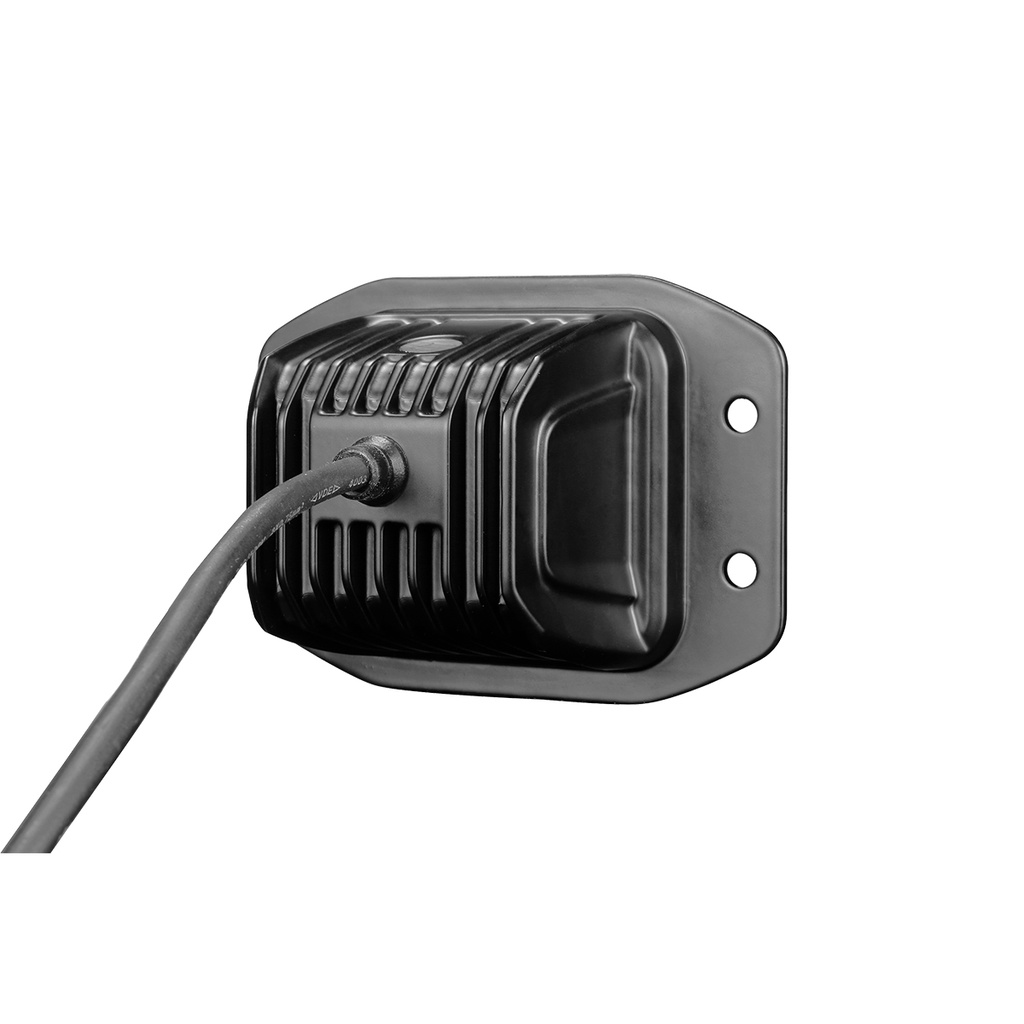

- Sealed Deutsch Connector
- Aluminum Flush Mount
- Hardware Included
- Pressure Relief Vent
- Electronic Thermal Management (ETM)
- Plug-and-go: pair two lamps with the PT6812 Plug & Go Harness (dual-lamp, sold separately)
- IP68 & IP69K · CE · RoHS
