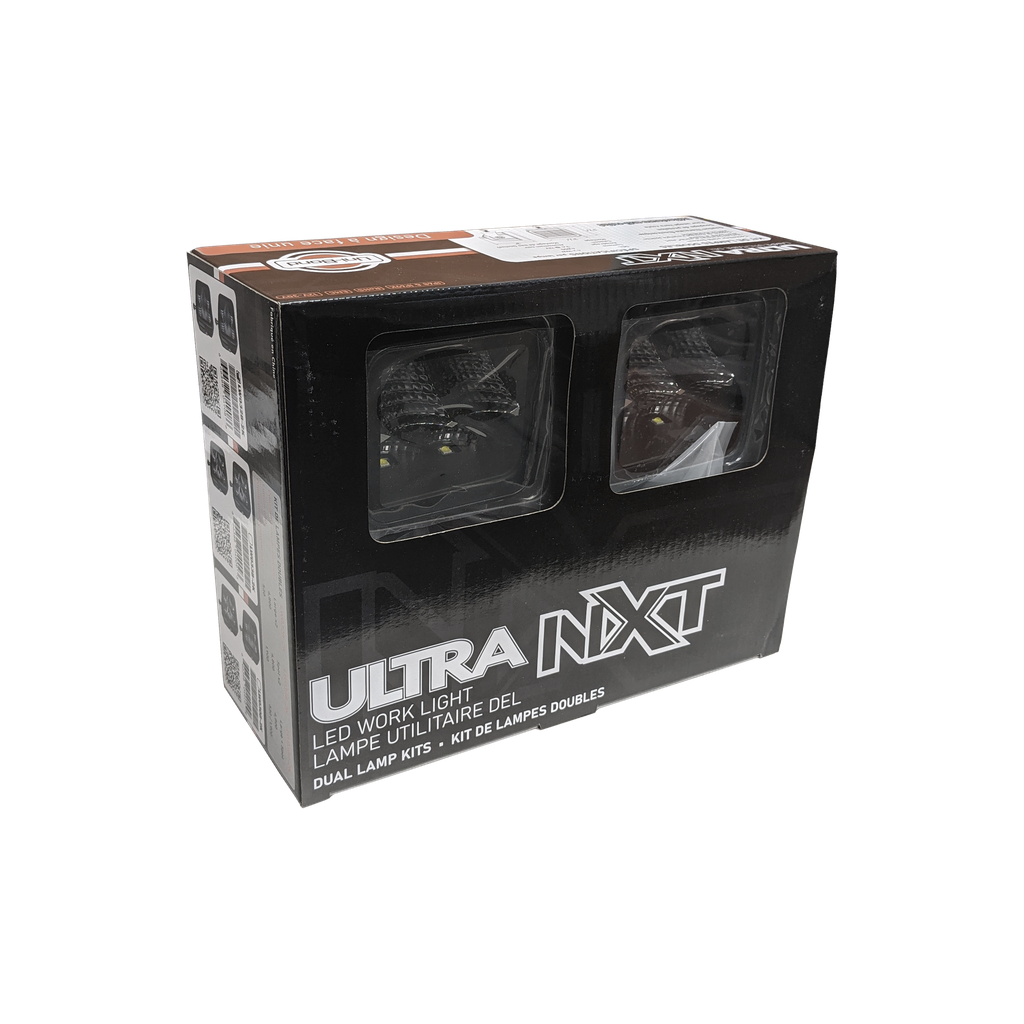

ULTRA NXT 3" LED Flood Dual Lamp Kit – 2 × 4,800 Lumens

A kit of two ULTRA NXT 3" square LED flood lamps (2 × LW0328) with an 18 ft Plug & Go harness, switch & fuse included. Each lamp uses 4 × 10 W LEDs for 4,800 raw lumens and 530 ft of optimal penetration. Runs on 12–30 V, drawing 3.4 A per lamp at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 4,800 raw lumens per lamp (3,110–1,810 effective) · flood beam · 530 ft optimal penetration
  • 12 V – 30 V input · 3.4 A @ 12 V per lamp draw
  • Electronic Thermal Management (ETM)
  • IP68 & IP69K · CE · RoHS
199.78 $ 199.78 $
199.78 $

FKR SALES – on hand
0 in stock — Available to order (special order)
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Internal Reference: LW0328-2K

Specifications

Raw Lumens4,800 lm per lamp
Effective Lumens3,110 – 1,810 lm per lamp
Optimal Penetration530 ft
LEDs4 × 10 W per lamp
Beam PatternFlood

Operating Voltage12 V – 30 V
Amp Draw3.4 A @ 12 V per lamp

HousingBlack Aluminum
LensPolycarbonate
Thermal ProtectionElectronic Thermal Management

Size3.17" W × 3.25" H × 3" D
80.5 W × 82.5 H × 76.2 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW0328-2K
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road

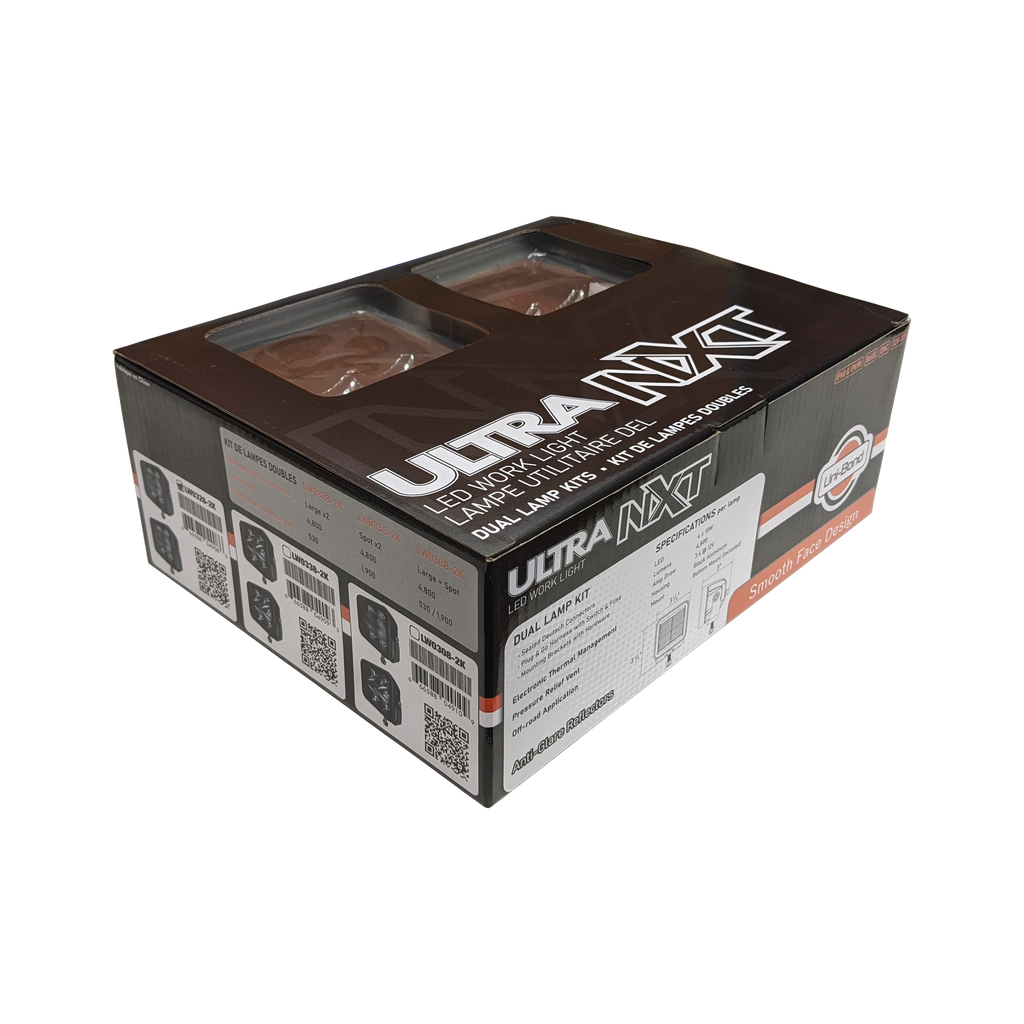

PackagingColour Box

Specifications from Uni-Bond Lighting (product page and Uni-Bond 2025 Lighting & Safety Catalog, p. 56). Metric dimensions converted from inches.

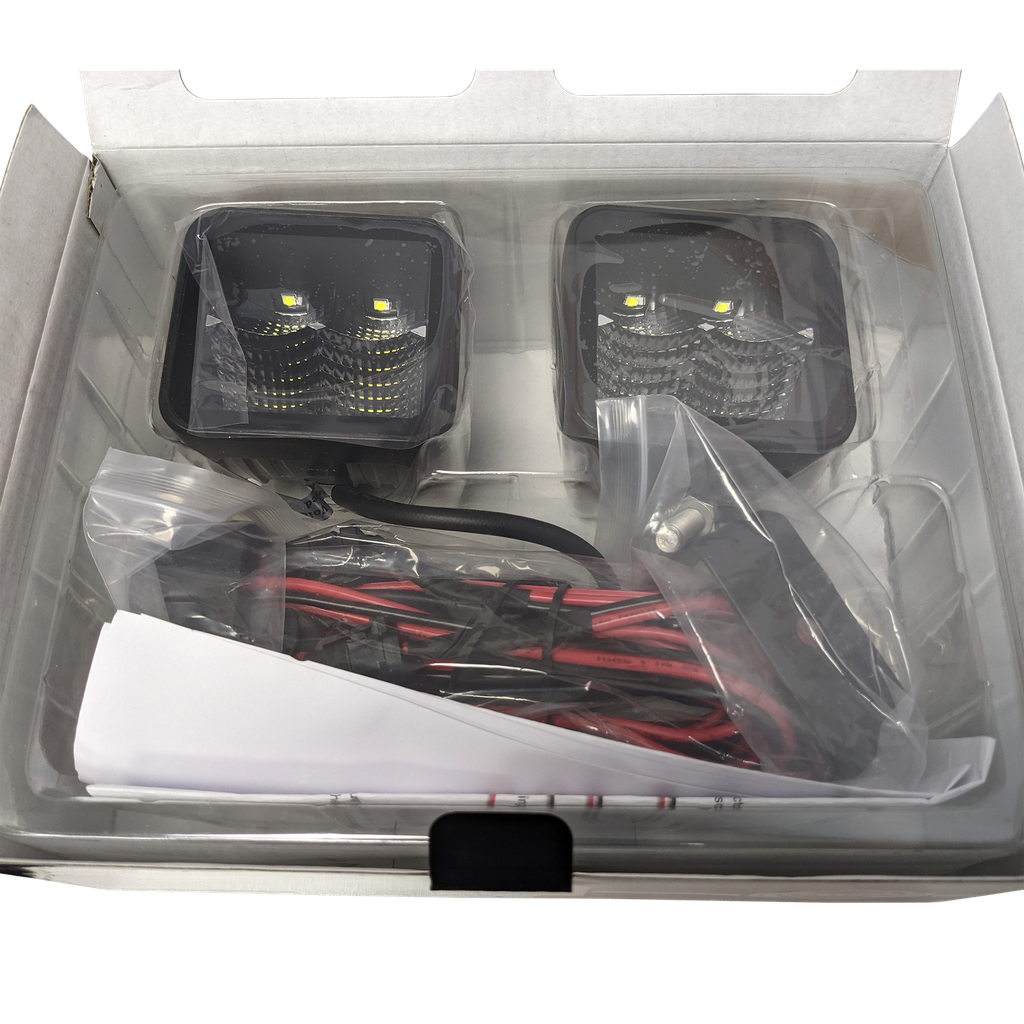

Kit Includes

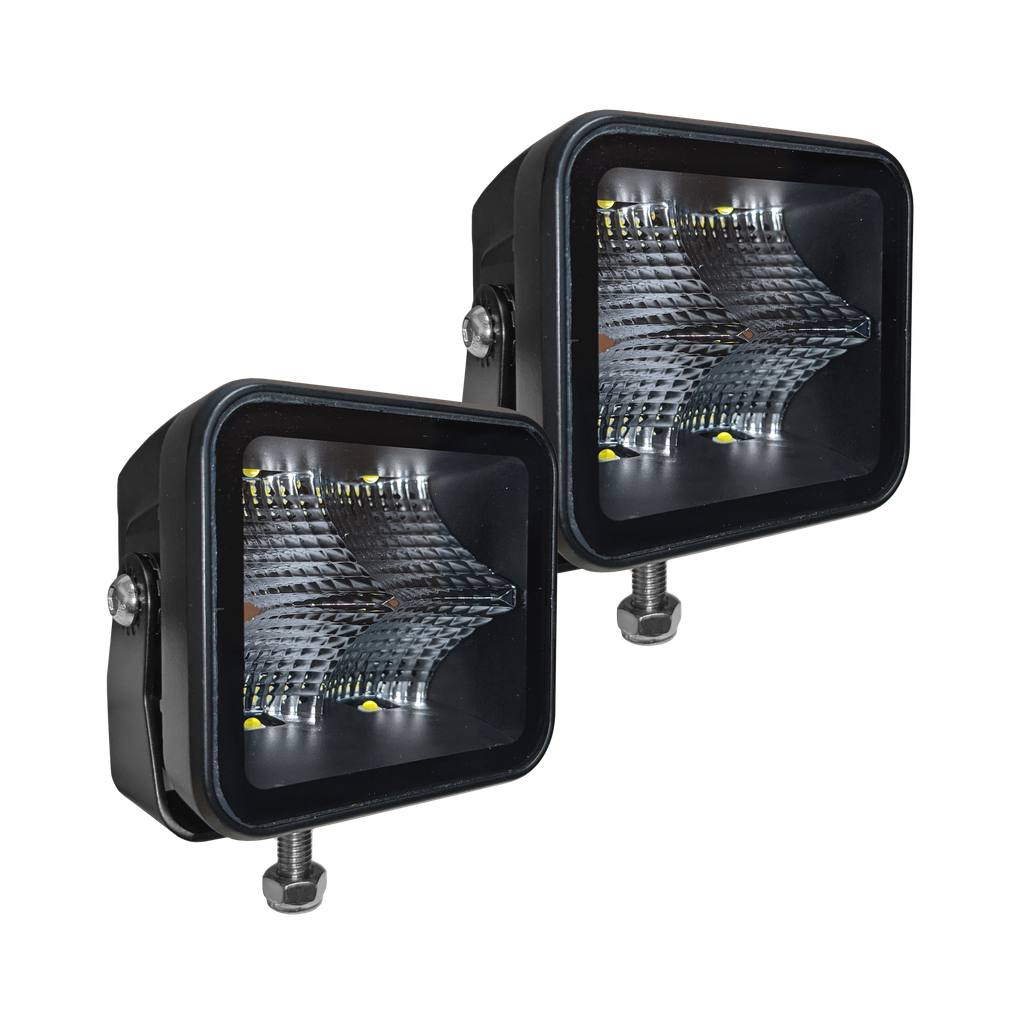

  • 2 × LW0328 ULTRA NXT 3" square LED flood lamps with female Deutsch connectors
  • 18 ft Plug & Go harness
  • Switch & fuse

Wiring

18 ft Plug & Go harness, switch & fuse included – plugs straight into both lamps’ Deutsch connectors.

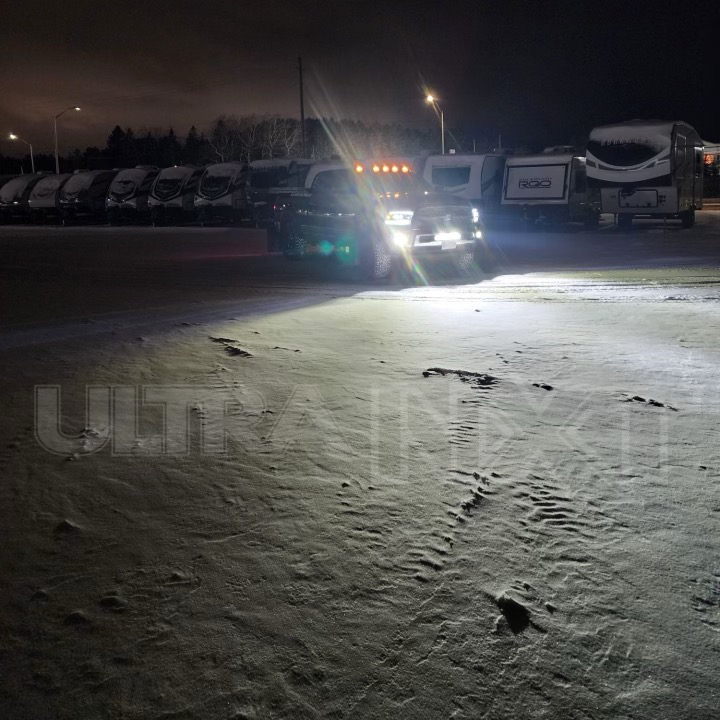

Application

Off-road.
