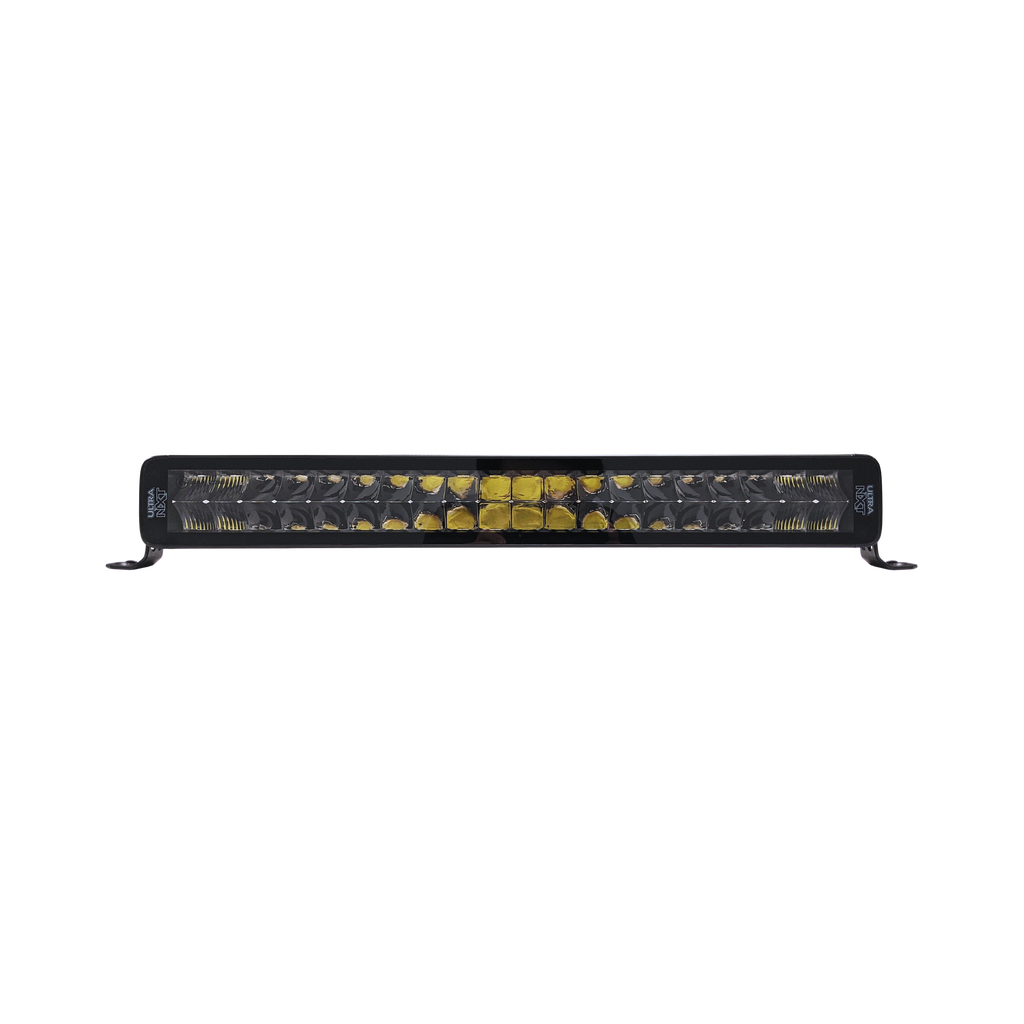

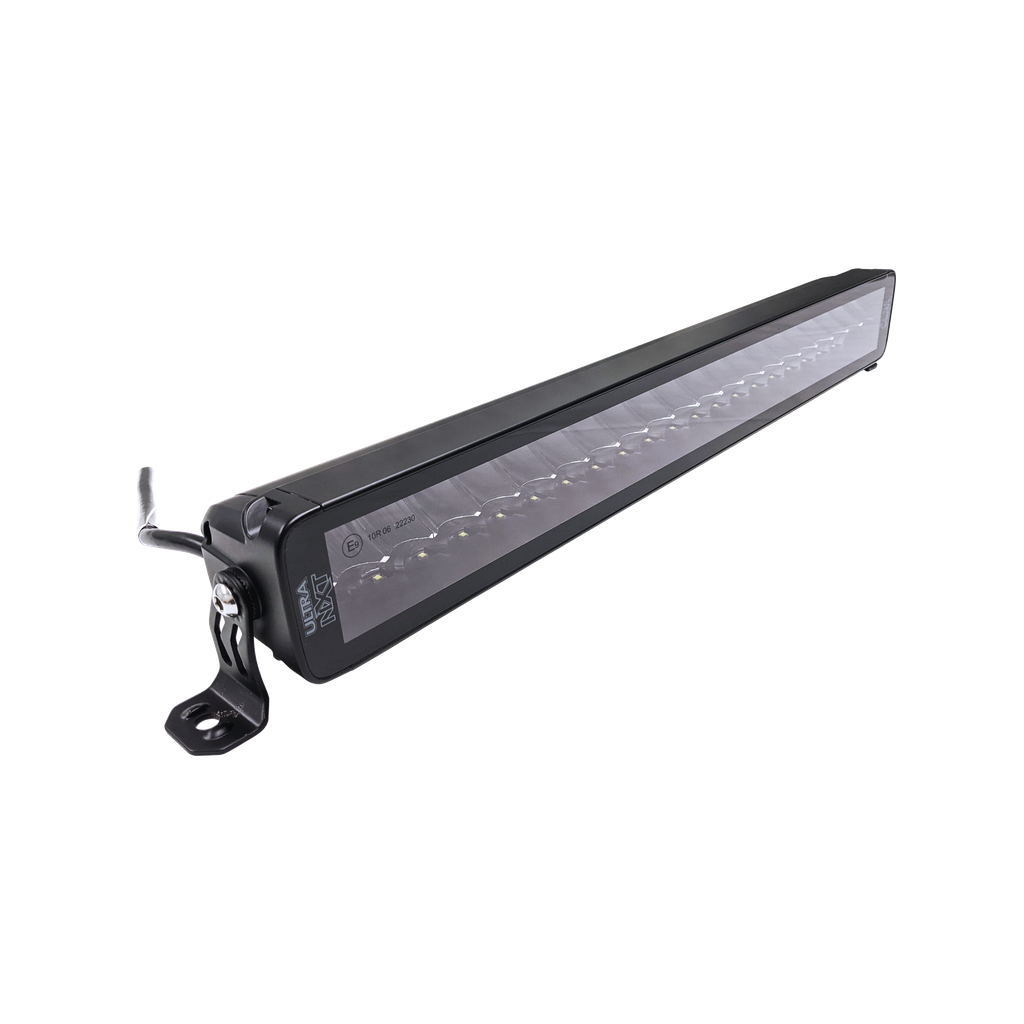

ULTRA NXT 21.5" Double Row LED Light Bar – Flood/Spot Combo, 16,800 Lumens

A 21.5" double row LED light bar with a flood/spot combo beam, from the Uni-Bond ULTRA NXT series. 40 × 5 W LEDs produce 16,800 raw lumens (11,000–7,000 effective) with 5,200–3,900 ft of optimal penetration. Runs on 10–30 V, drawing 14.6 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 16,800 raw lumens (11,000–7,000 effective) · combo beam · 5,200–3,900 ft optimal penetration
  • 10 V – 30 V input · 14.6 A @ 12 V draw
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Side Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1822 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
$ 307.98 $ 307.98
$ 307.98

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW92108

Specifications

Raw Lumens16,800 lm
Effective Lumens11,000 – 7,000 lm
Optimal Penetration5,200 – 3,900 ft
LEDs40 × 5 W
Beam PatternCombo

Operating Voltage10 V – 30 V
Amp Draw14.6 A @ 12 V
Plug & Go HarnessPT1822 (sold separately)

TypeDouble Row
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size21.5" L × 2.75" H × 2.63" D
546.1 L × 69.8 H × 66.8 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW92108
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW92108 21.5" Double Row LED Light Bar
  • Side brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1822 Plug & Go Harness (sold separately).

Accessories (Sold Separately)

Application

Off-road.
