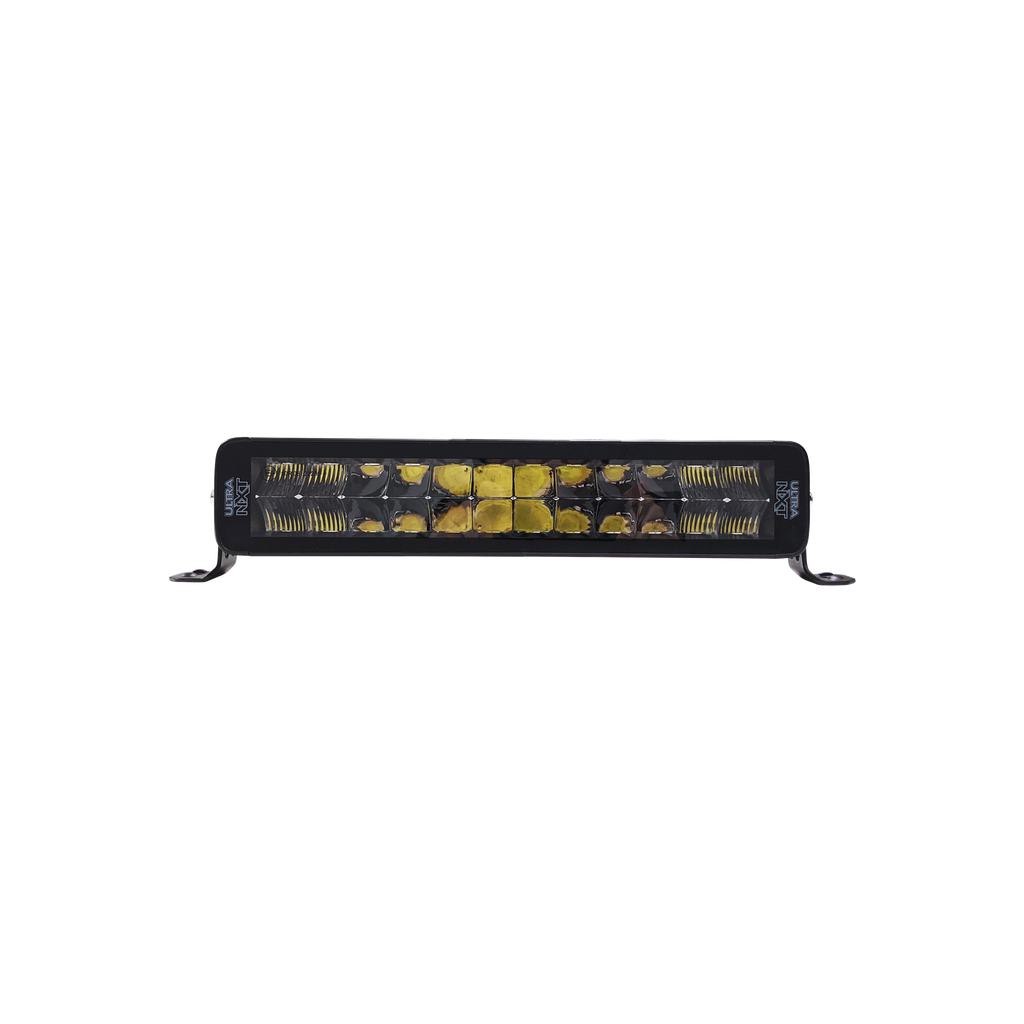

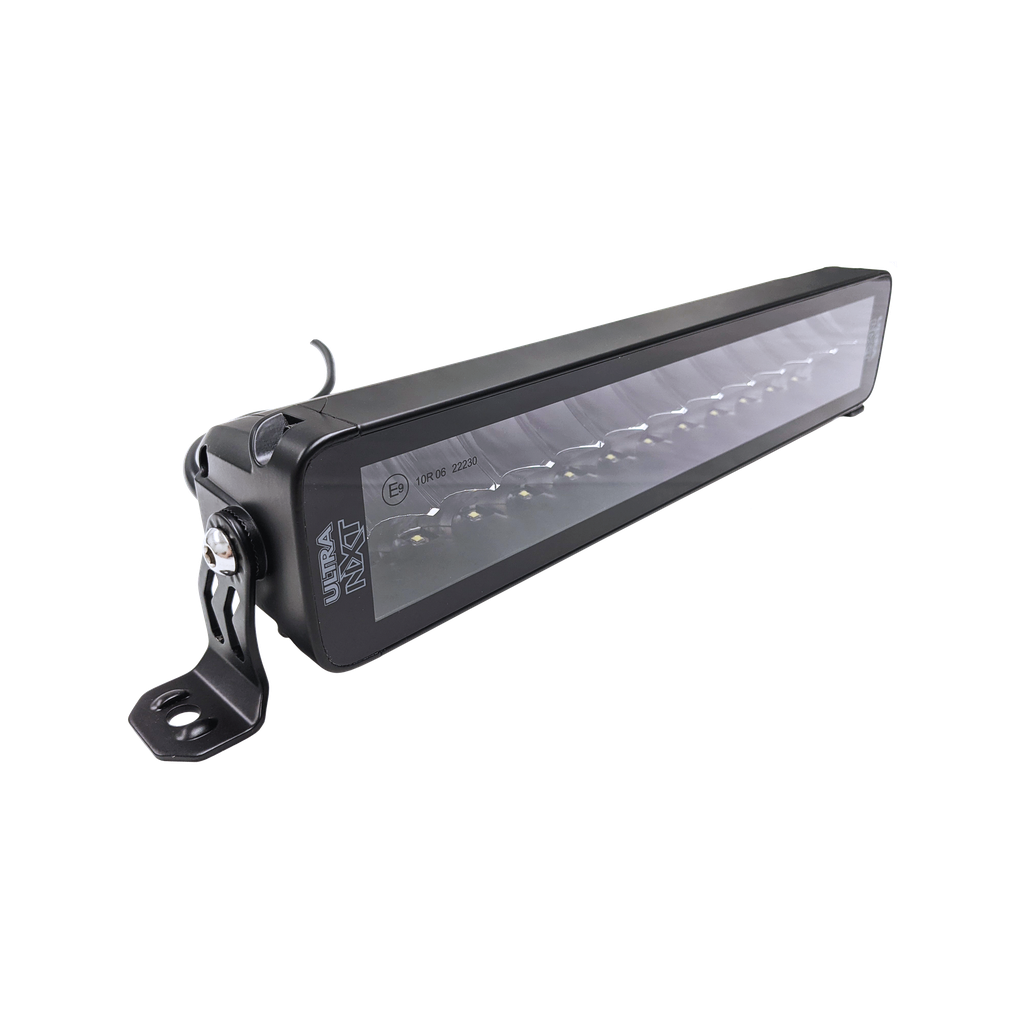

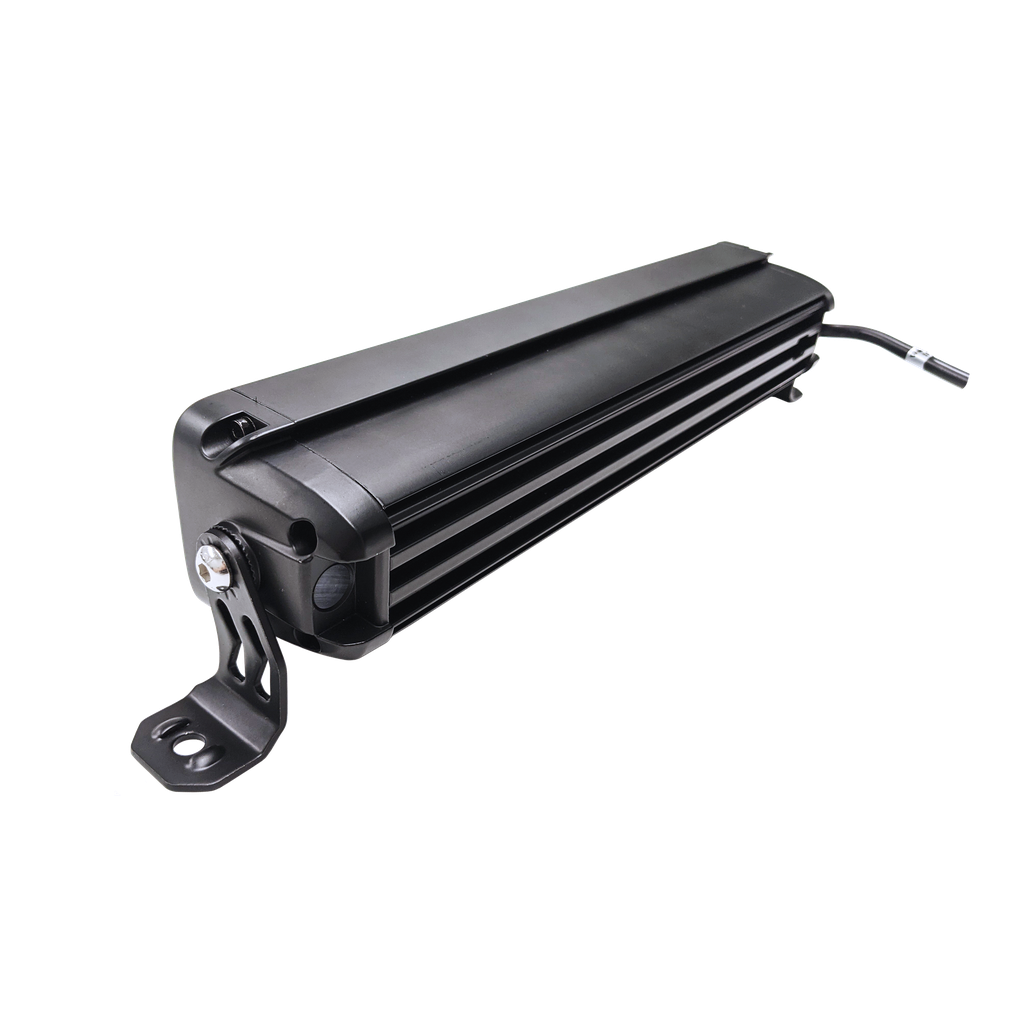

ULTRA NXT 13" Double Row LED Light Bar – Flood/Spot Combo, 10,080 Lumens

A 13" double row LED light bar with a flood/spot combo beam, from the Uni-Bond ULTRA NXT series. 24 × 5 W LEDs produce 10,080 raw lumens (6,600–4,200 effective) with 3,900–3,000 ft of optimal penetration. Runs on 10–30 V, drawing 7.73 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 10,080 raw lumens (6,600–4,200 effective) · combo beam · 3,900–3,000 ft optimal penetration
  • 10 V – 30 V input · 7.73 A @ 12 V draw
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Side Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1802 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
219.60 $ 219.60 $
219.60 $

FKR SALES – on hand
0 in stock — Available to order (special order)
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Internal Reference: LW91308

Specifications

Raw Lumens10,080 lm
Effective Lumens6,600 – 4,200 lm
Optimal Penetration3,900 – 3,000 ft
LEDs24 × 5 W
Beam PatternCombo

Operating Voltage10 V – 30 V
Amp Draw7.73 A @ 12 V
Plug & Go HarnessPT1802 (sold separately)

TypeDouble Row
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size13" L × 2.75" H × 2.63" D
330.2 L × 69.8 H × 66.8 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW91308
BrandUni-Bond Lighting
SeriesULTRA NXT

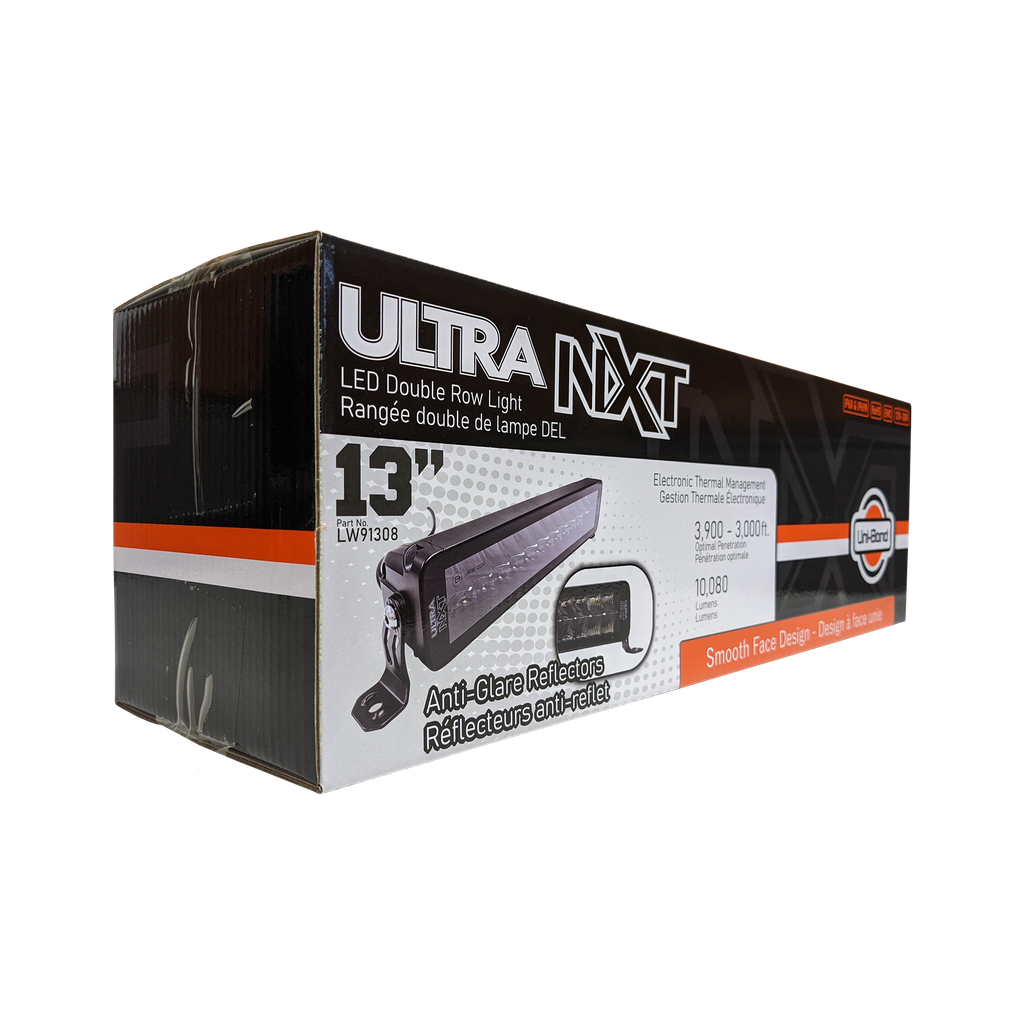

PackagingRetail Colour Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW91308 13" Double Row LED Light Bar
  • Side brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1802 Plug & Go Harness (sold separately).
