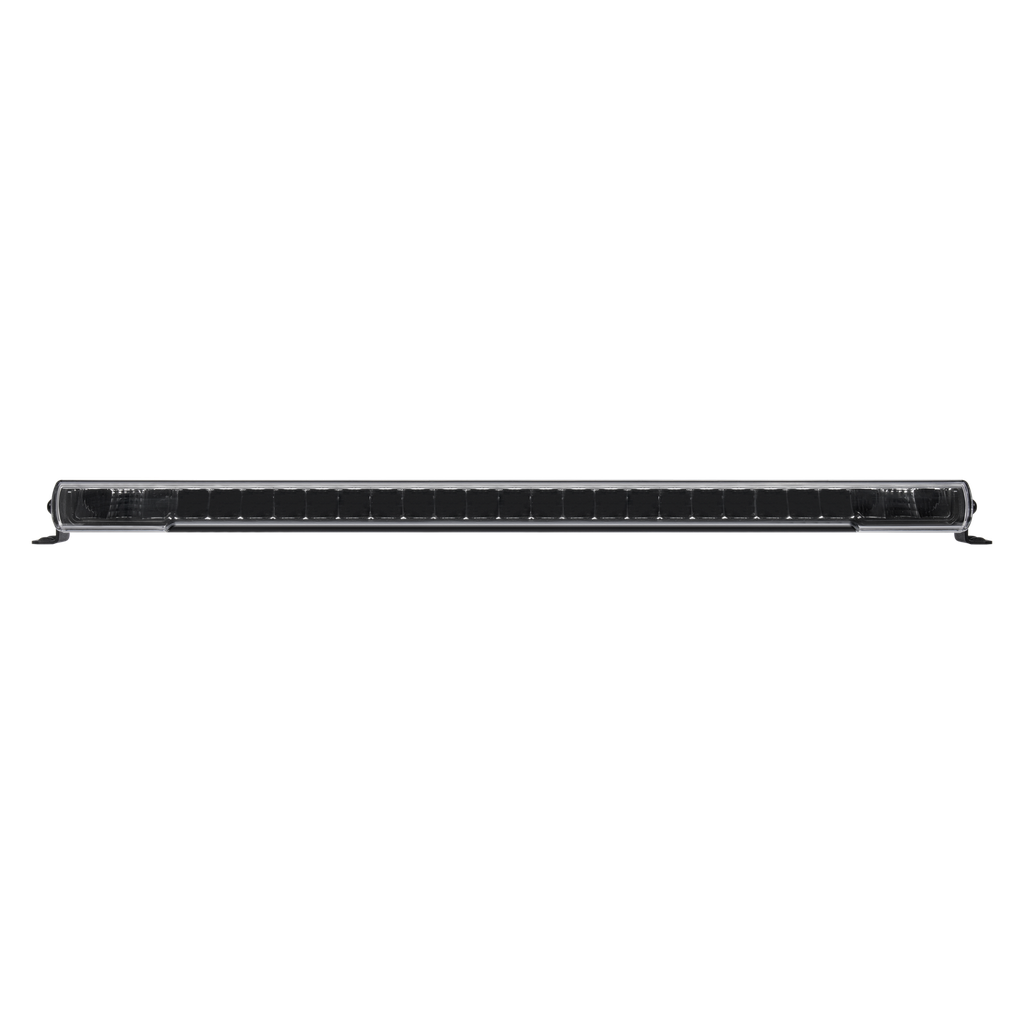

ULTRA NXT 30" ECE Certified LED Driving Light Bar – 6,200 lm ECE / 17,547 lm Boost

ULTRA NXT 30" ECE Certified LED Driving Light Bar – 6,200 lm ECE / 17,547 lm Boost

A 30" ECE-certified LED driving light bar from the Uni-Bond ULTRA NXT series, with a built-in switch for ECE driving or Boost mode. 21 × 5 W (flood) + 6 × 13 W (spot) LEDs deliver 6,200 lumens in ECE driving mode or 17,547 lumens in Boost mode. Runs on 10–30 V, drawing up to 18.48 A at 12 V. Aluminum housing, polycarbonate lens and IP69K protection.

  • 6,200 lm ECE / 17,547 lm Boost · auxiliary driving beam
  • 10 V – 30 V input · up to 18.48 A @ 12 V draw
  • Amber or White Position Lights
  • Dual Function: ECE Driving or Boost Mode
  • Built-In Easy Switch
  • Adjustable Stainless Steel Mounting Bracket
  • Anti-Glare Reflectors
  • Electronic Thermal Management (ETM)
  • IP69K · CE · RoHS · ECE R148 / ECE R149
317.80 $ 317.80 $
317.80 $

FKR SALES – on hand
0 in stock — Available to order (special order)
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Internal Reference: LW883119

Specifications

ECE Mode Lumens6,200 lm
Boost Mode Lumens17,547 lm
Optimal Penetration2,190 Lux @ 10M (ECE)
5,240 Lux @ 10M (Boost)
LEDs21 × 5 W (Flood)
6 × 13 W (spot)
Beam PatternAuxiliary Driving Beam

Operating Voltage10 V – 30 V
Amp Drawup to 18.48 A @ 12 V

HousingAluminum
LensPolycarbonate
Thermal ProtectionElectronic Thermal Management

Size31.26" L × 1.81" H × 2.42" D
794.0 L × 46.0 H × 61.5 D mm

ECE StandardECE R148
ECE R149
Ingress ProtectionIP69K
CISPR 25Class 2
EMCCE; ECE R10.05
RoHSCertified

Part NumberLW883119
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationLegal for Road Use
PackagingBox

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW883119 30" ECE Certified LED Driving Light Bar

Application

Legal for Road Use.
