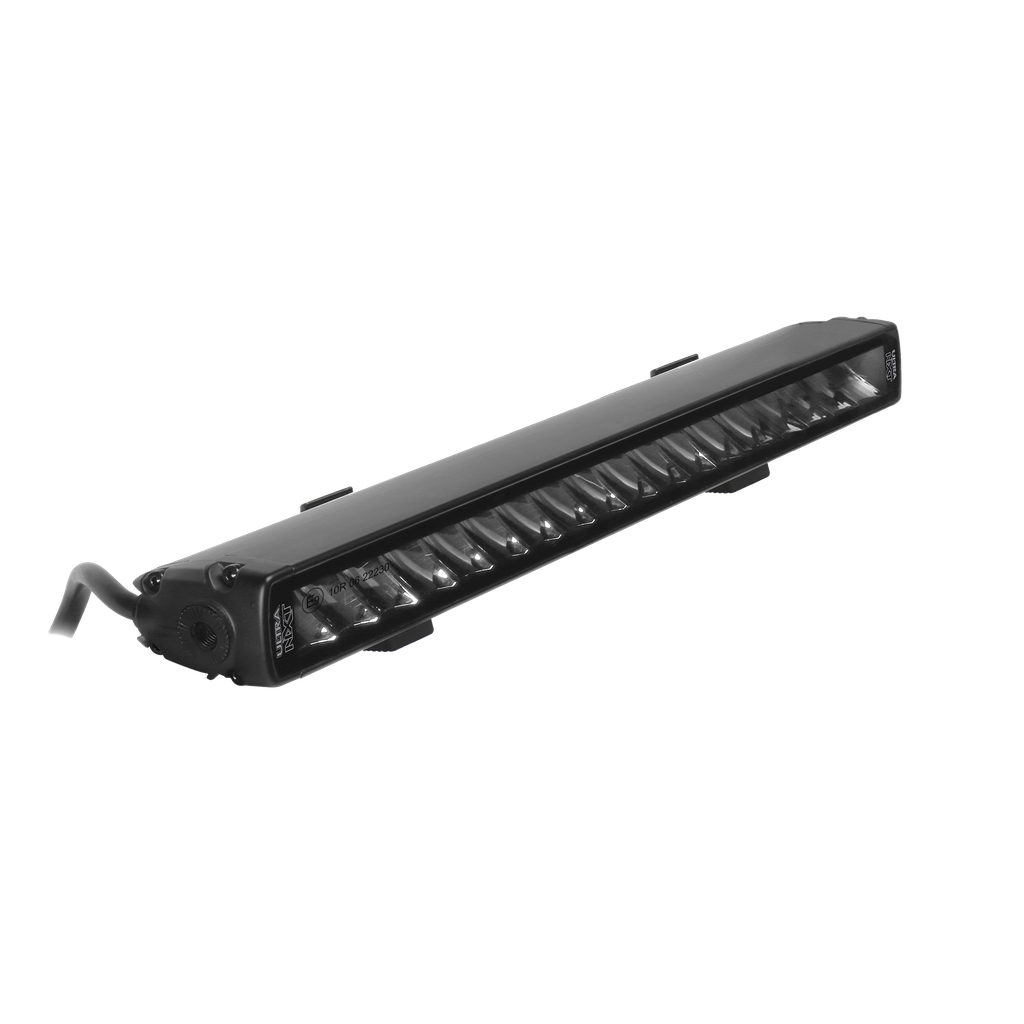

ULTRA NXT 18" Single Row LED Light Bar – Flood/Spot Combo, 7,560 Lumens

ULTRA NXT 18" Single Row LED Light Bar – Flood/Spot Combo, 7,560 Lumens

An 18" single row LED light bar with a flood/spot combo beam, from the Uni-Bond ULTRA NXT series. 18 × 5 W LEDs produce 7,560 raw lumens (5,100–3,904 effective) with 3,700–3,000 ft of optimal penetration. Runs on 10–30 V, drawing 6.32 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 7,560 raw lumens (5,100–3,904 effective) · combo beam · 3,700–3,000 ft optimal penetration
  • 10 V – 30 V input · 6.32 A @ 12 V draw
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Bottom Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1802 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
$ 210.70 $ 210.70
$ 210.70

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW881808

Specifications

Raw Lumens7,560 lm
Effective Lumens5,100 – 3,904 lm
Optimal Penetration3,700 – 3,000 ft
LEDs18 × 5 W
Beam PatternCombo

Operating Voltage10 V – 30 V
Amp Draw6.32 A @ 12 V
Plug & Go HarnessPT1802 (sold separately)

TypeSingle Row
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size18" L × 1.88" H × 2.14" D
457.2 L × 47.8 H × 54.4 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW881808
BrandUni-Bond Lighting
SeriesULTRA NXT
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW881808 18" Single Row LED Light Bar
  • Bottom brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1802 Plug & Go Harness (sold separately).
