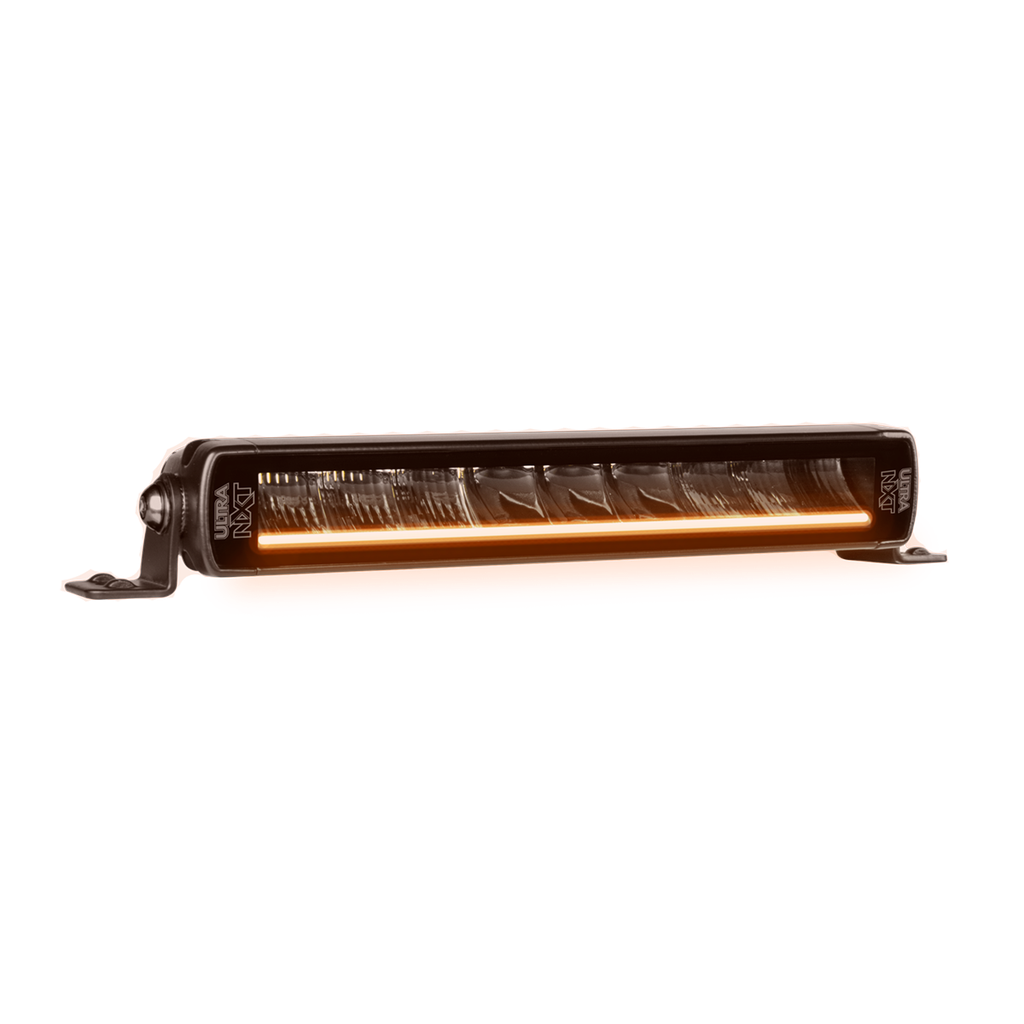

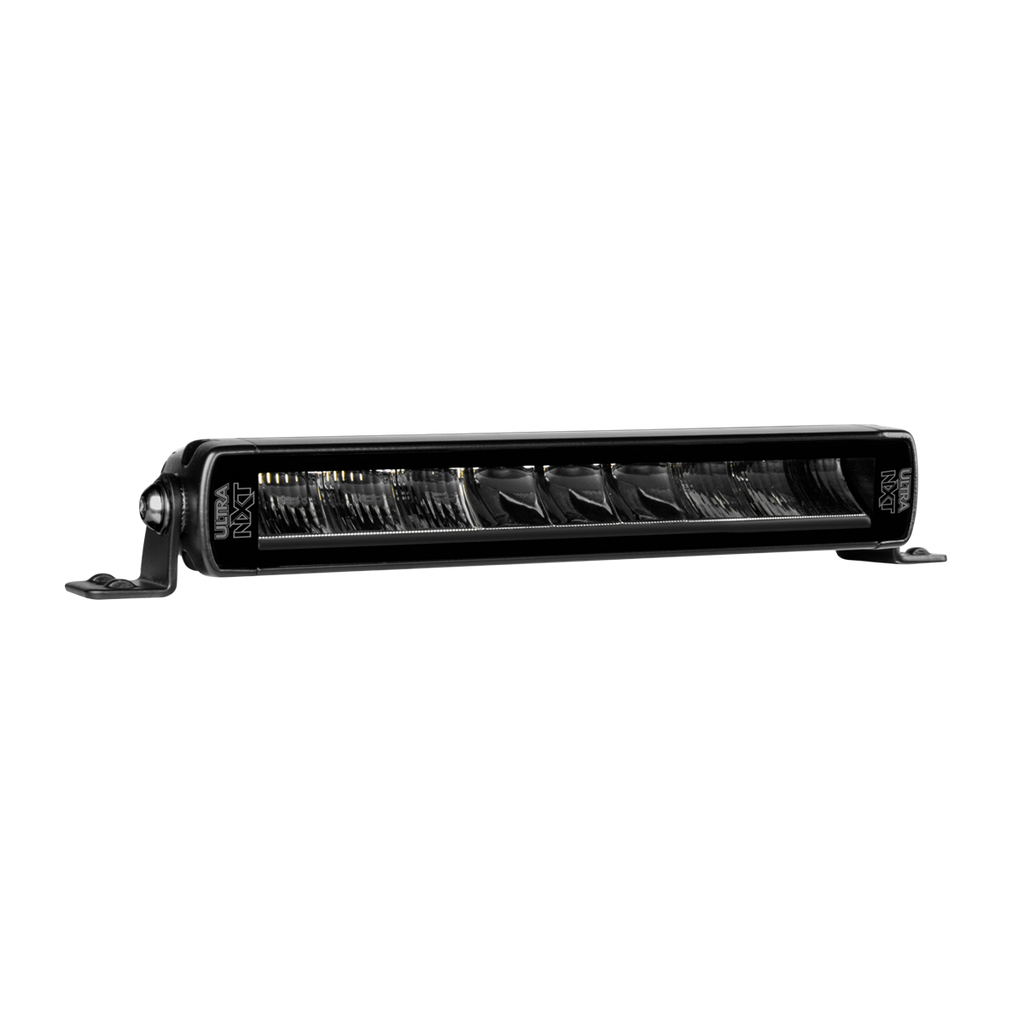

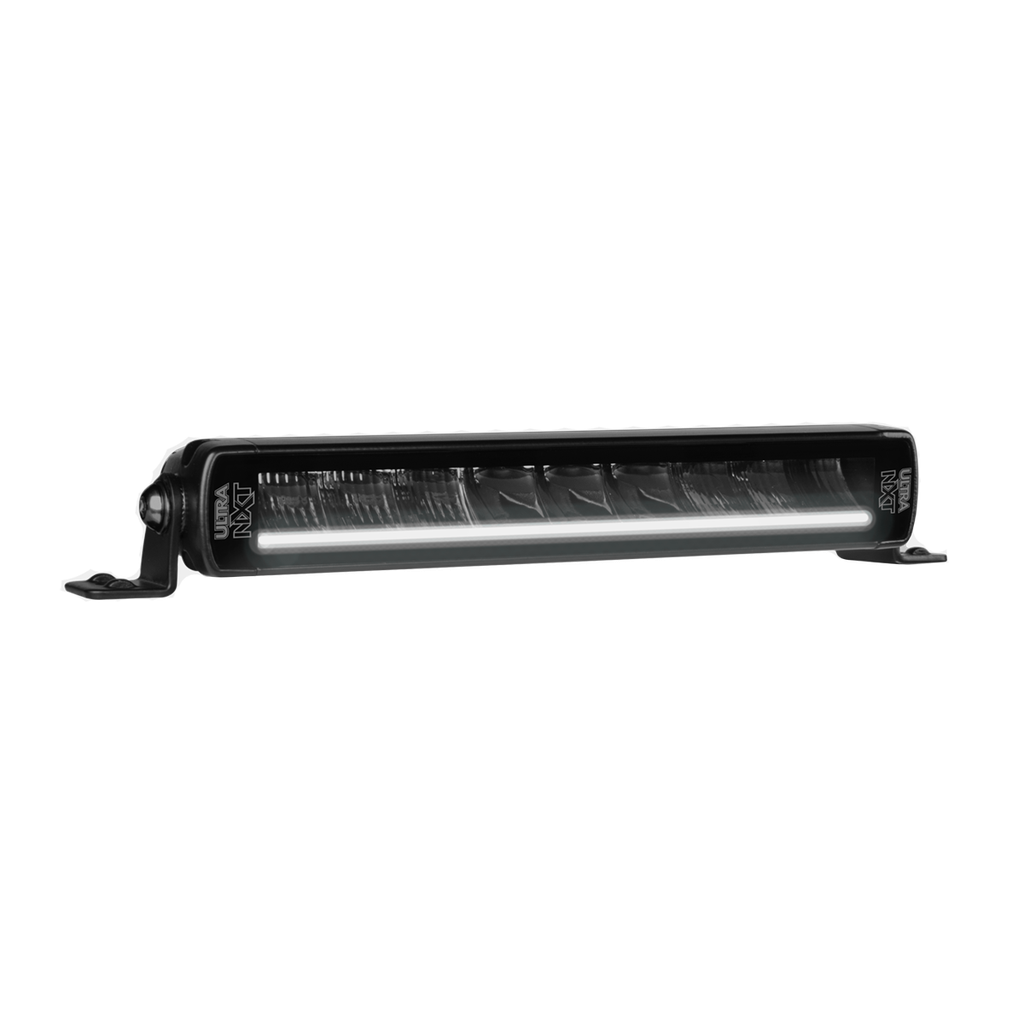

ULTRA NXT 10" Single Row LED Light Bar with Amber/White Position Light – 3,780 Lumens

A 10" single row LED light bar with a flood/spot combo beam and amber/white position lights, from the Uni-Bond ULTRA NXT series. 9 × 5 W LEDs produce 3,780 raw lumens (2,703 effective) with 2,300 ft of optimal penetration. Runs on 10–30 V, drawing 3.0 A at 12 V. Black aluminum housing, polycarbonate lens and IP68 & IP69K protection.

  • 3,780 raw lumens (2,703 effective) · combo beam · 2,300 ft optimal penetration
  • 10 V – 30 V input · 3.0 A @ 12 V draw
  • Position Lights (Amber/White)
  • Adjustable Mounts Allow for Flexible Aiming of Beam
  • Side Brackets Included
  • Pressure Relief Vent
  • Electronic Thermal Management (ETM)
  • Plug-and-go: use the PT1802 Plug & Go Harness (sold separately)
  • IP68 & IP69K · CE · RoHS
134.26 $ 134.26 $
134.26 $

FKR SALES – on hand
0 in stock — Available to order (special order)
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Internal Reference: LW881038

Specifications

Raw Lumens3,780 lm
Effective Lumens2,703 lm
Optimal Penetration2,300 ft
LEDs9 × 5 W
Beam PatternCombo
Position LightAmber / White

Operating Voltage10 V – 30 V
Amp Draw3.0 A @ 12 V
Plug & Go HarnessPT1802 (sold separately)

TypeSingle Row
HousingBlack Aluminum
LensPolycarbonate
VentingPressure relief vent
Thermal ProtectionElectronic Thermal Management

Size9.66" L × 1.88" H × 2.14" D
245.4 L × 47.8 H × 54.4 D mm

Ingress ProtectionIP68 & IP69K
EMCCE
RoHSCertified

Part NumberLW881038
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW881038 10" Single Row LED Light Bar with Amber/White Position Light
  • Side brackets

Wiring

For a plug-and-go install, use the Uni-Bond PT1802 Plug & Go Harness (sold separately).

Accessories (Sold Separately)

Application

Off-road.
