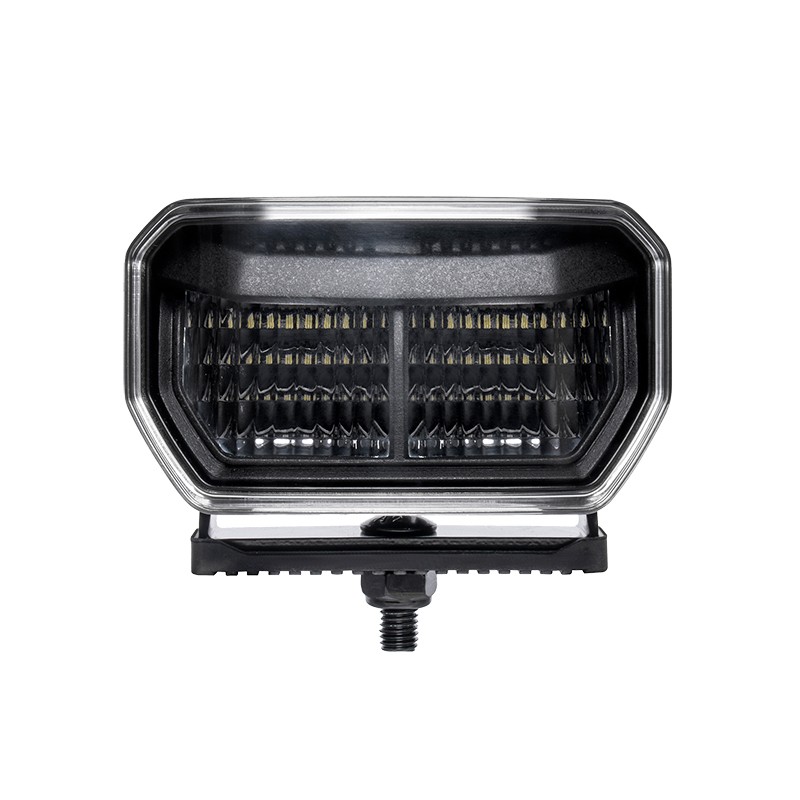

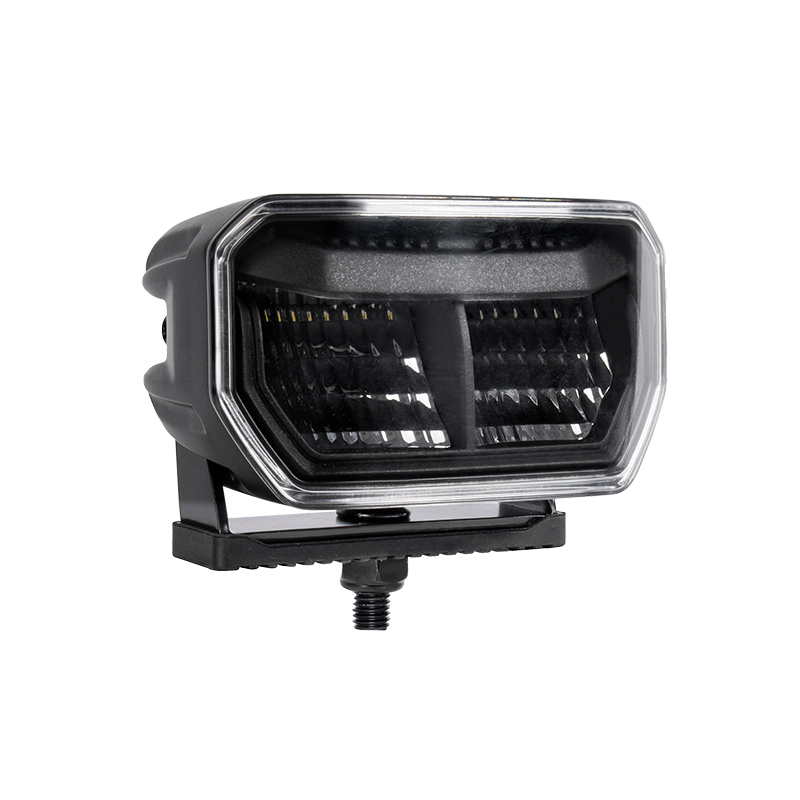

ULTRA NXT 5" Rectangular LED Flood Lamp – 3,996 Lumens

A 5" rectangular LED flood lamp with anti-glare reflectors, from the Uni-Bond ULTRA NXT series. 4 × 15 W LEDs produce 3,996 raw lumens with 324 ft of optimal penetration. Runs on 12–24 V, drawing 5.18 A at 12 V. Aluminum housing, polycarbonate lens and IP69K protection.

  • 3,996 raw lumens · flood beam · 324 ft optimal penetration
  • 12 V – 24 V input · 5.18 A @ 12 V draw
  • 60G Shock Resistance
  • Anti-Glare Reflectors
  • Built-In Deutsch Connector
  • Electronic Thermal Management (ETM)
  • IP69K · CE · RoHS
$ 98.00 $ 98.00
$ 98.00

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: LW5308

Specifications

Raw Lumens3,996 lm
Optimal Penetration324 ft
LEDs4 × 15 W
Beam PatternFlood

Operating Voltage12 V – 24 V
Amp Draw5.18 A @ 12 V
ConnectorBuilt-in Deutsch

HousingAluminum
LensPolycarbonate
Thermal ProtectionElectronic Thermal Management

Size4.96" W × 2.83" H × 3.07" D
126.0 W × 71.9 H × 78.0 D mm

Ingress ProtectionIP69K
CISPR 25Class 3
EMCCE; ECE R10.05
RoHSCertified

Part NumberLW5308
BrandUni-Bond Lighting
SeriesULTRA NXT
ApplicationOff-road
PackagingBulk
Clamshell

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × LW5308 5" Rectangular LED Flood Lamp

Wiring

Built-in Deutsch.

Application

Off-road.
