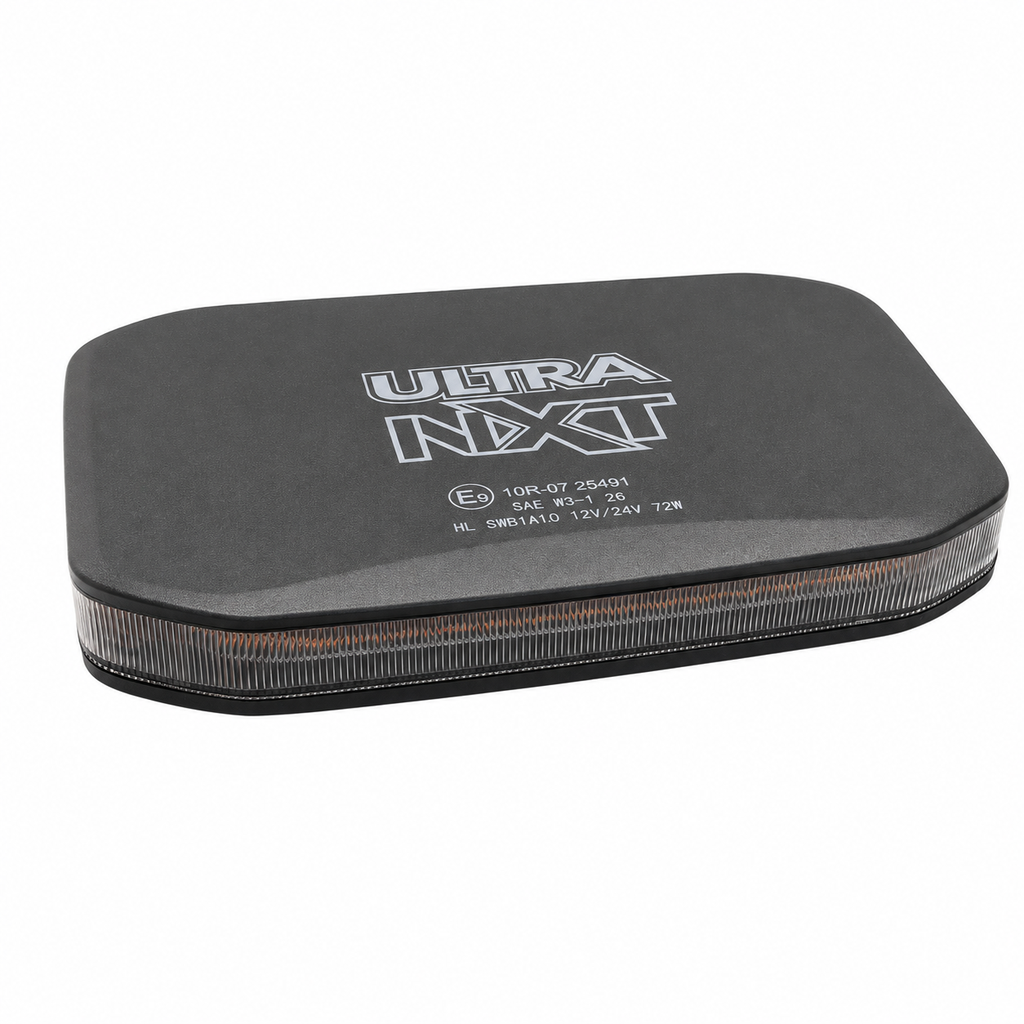

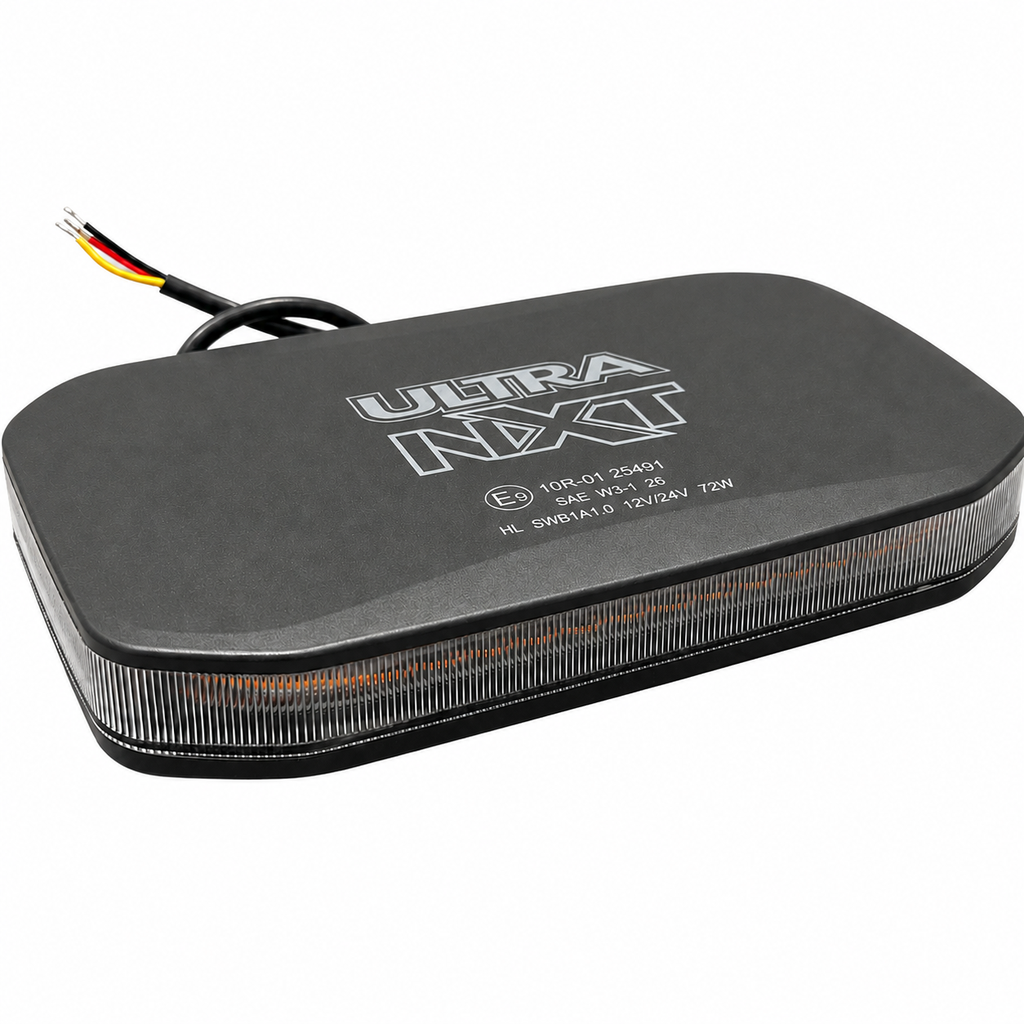

ULTRA NXT 10" Amber LED Low Profile Warning Light Bar – Single Bolt Mount

A compact 10" low profile amber LED warning light bar with 360° light output, from the Uni-Bond ULTRA NXT series. Single bolt mount with lead wires. 72 × 1 W LEDs (amber) with 12 flash patterns. Runs on 10–30 V, drawing 5.89 A at 12 V. ABS housing, polycarbonate lens and IP67 protection.

  • 12 flash patterns · 72 × 1 W LEDs · Amber
  • 10 V – 30 V input · 5.89 A @ 12 V draw
  • Compact low profile design with powerful 360° light output
  • Advanced LED Modules that improve flash rating
  • Unique optics with linear spreader oval TIR lens
  • Synchronizes up to 10 units
  • IP67 · SAE J845 Class 1
$ 386.78 $ 386.78
$ 386.78

FKR SALES – on hand
Special order — Available to order
Delivery & store pickup
Available to order (special order)
Add to cart
Terms and Conditions
Ships within 2 business days
Contact Us

Internal Reference: E-2810AC

Specifications

Flash Patterns12 Patterns
LEDs72 × 1 W
LED ColourAmber

Operating Voltage10 V – 30 V
Amp Draw5.89 A @ 12 V

Lens ColourClear
MountingSingle Bolt Mount with Lead Wires
HousingABS Housing
LensPolycarbonate

Size10.16" L × 6.69" W × 1.5" H
258.1 L × 169.9 W × 38.1 H mm

Ingress ProtectionIP67
EMCCertified
SAE / ECE StandardJ845 Class 1

Part NumberE-2810AC
BrandUni-Bond Lighting
SeriesULTRA NXT
PackagingRetail Box

Specifications from Uni-Bond Lighting. Metric dimensions converted from inches.

What’s in the Box

  • 1 × E-2810AC 10" Amber LED Low Profile Warning Light Bar
  • Mounting Hardware

Wiring

Single Bolt Mount with Lead Wires.
